Part Image

TY-302P - Triad Magnetics

Description: 600 Impedance Primary Ohms 600/600 Impedance Secondary Ohms 1:1.47 Audio Transformer 300Hz ~ 3.5kHz Through Hole

Download TY-302P Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

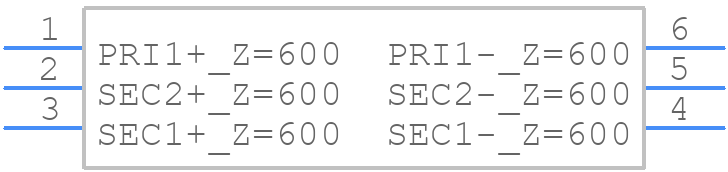

Symbol
TY-302P - Triad Magnetics - PCB symbol
click to zoom

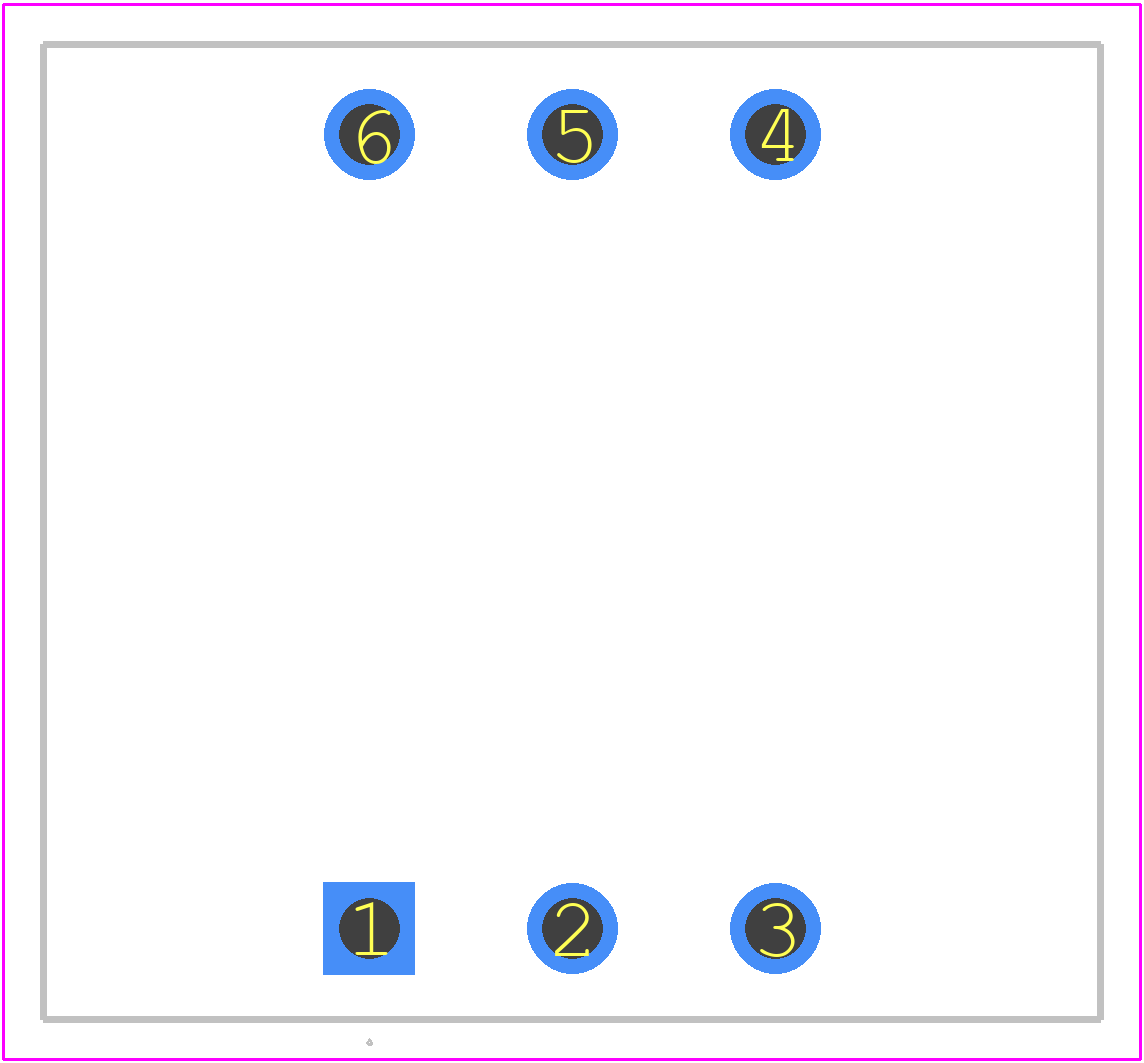

PCB Footprints
TY-302P - Triad Magnetics PCB footprint - Other - Other - TY-302P-3
click to zoom

TY-302P Details

  • Manufacturer Part Number:

    TY-302P

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • Manufacturer:

    Triad Magnetics

  • Application:

    ISOLATION

  • Height:

    22.1 mm

  • Insertion Loss:

    0.65 dB

  • Length:

    26.42 mm

  • Mounting Feature:

    THROUGH HOLE MOUNTED

  • Number of Primary Winding:

    1

  • Number of Secondary Winding:

    2

  • Primary Impedance:

    600 OHMS

  • Secondary Impedance:

    600 OHMS

  • Surface Mount:

    NO

  • Transformer Type:

    TELECOM TRANSFORMER

  • Width:

    24.38 mm

TY-302P Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the TY-302P is -40°C to 85°C, although it can withstand storage temperatures from -40°C to 125°C.
  • Yes, the TY-302P is designed to withstand high-vibration environments, with a vibration rating of 10-2000 Hz, 1.5 mm peak-to-peak.
  • Triad Magnetics recommends a minimum PCB spacing of 0.25 inches (6.4 mm) between the transformer and other components, and a minimum of 0.1 inches (2.5 mm) between the transformer pins and the PCB edge.
  • The TY-302P meets the requirements for medical devices, including UL 60601-1 and IEC 60601-1, but it is essential to consult with Triad Magnetics and perform necessary testing and certification for specific medical device applications.
  • The TY-302P is designed to operate up to 80,000 feet (24,384 meters) above sea level, making it suitable for high-altitude applications such as aerospace and defense.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TY-302P Overview

Use the download button to access the TY-302P schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like TY-30, or try a keyword search, such as Telecom Transformers
