- Part Number TY-304P
- Manufacturer Triad Magnetics
- Pin Count 6
- Part Category Transformer
- Package Category Other
- Footprint Name Other - TY-304P-2
- Released Date May 6, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
TY-304P Details
-
Manufacturer Part Number:
TY-304P
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Country Of Origin:
Philippines
-
ECCN Code:
EAR99
-
Manufacturer:
Triad Magnetics
-
Application:
COUPLING
-
Height:
18.8 mm
-
Insertion Loss:
1 dB
-
Length:
20.63 mm
TY-304P Frequently Asked Questions (FAQs)
-
The recommended operating temperature range for the TY-304P is -40°C to 125°C, although it can withstand up to 150°C for short periods of time.
-
Yes, the TY-304P is designed to withstand high-vibration environments and is suitable for use in applications such as industrial control systems, motor drives, and transportation systems.
-
Yes, the TY-304P is compatible with lead-free soldering processes and meets the requirements of the RoHS directive.
-
The maximum allowable DC resistance for the TY-304P is 0.5 ohms per winding, although this value can vary depending on the specific application and operating conditions.
-
Yes, the TY-304P can be used in parallel or series configurations to achieve higher power ratings or to improve overall system efficiency.
Trust Checks
Expert Contribution
System Verified
Community Approved
TY-304P Overview

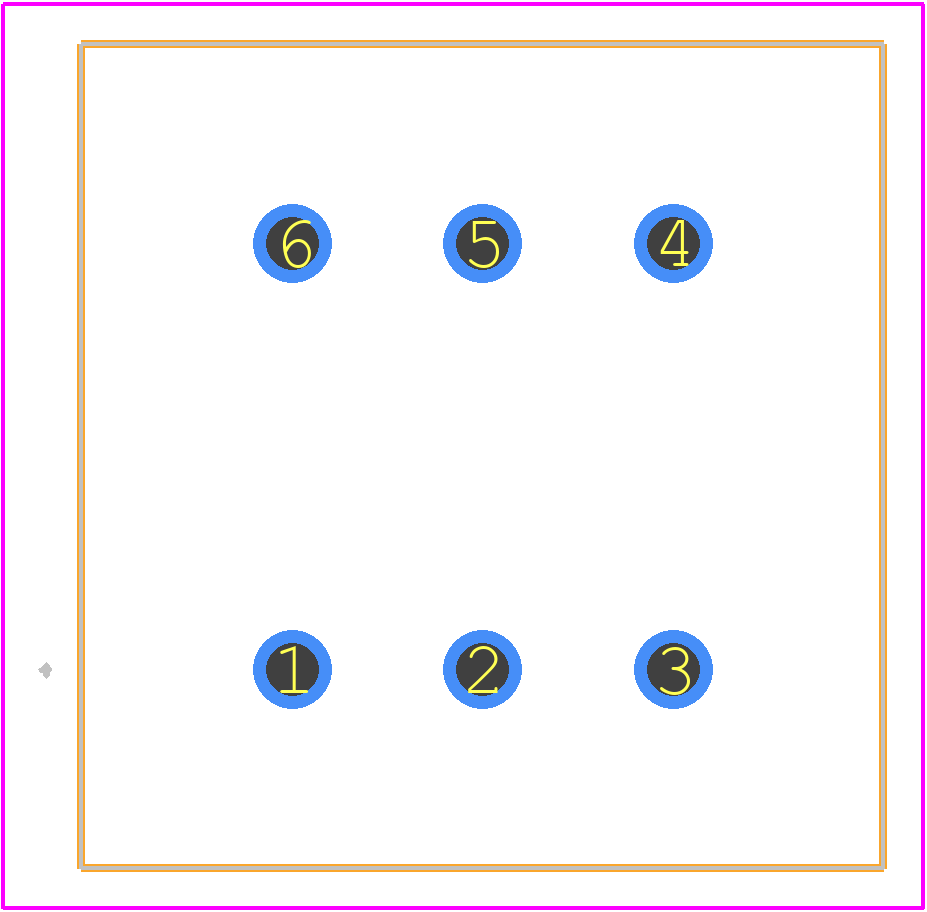

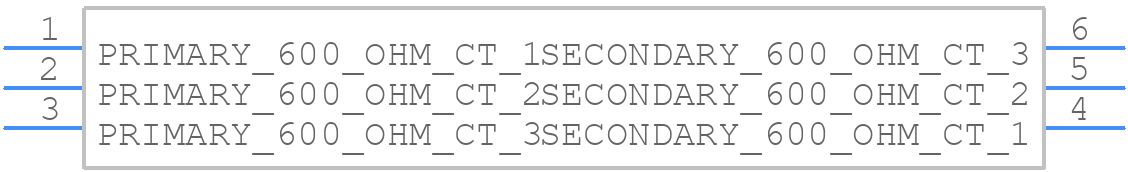

Use the download button to access the TY-304P schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TY-30,
or try a keyword search, such as Telecom Transformers
