TZ03R300F169B00 footprint, schematic symbol and 3D model by Murata Electronics

Symbol

click to zoom

PCB Footprints

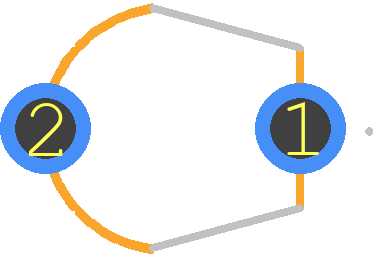

TZ03R300F169B00 - Murata Electronics PCB footprint - Other - Other - TZ03(B)

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for TZ03R300F169B00
Part Number TZ03R300F169B00
Manufacturer Murata Electronics
Pin Count 2
Part Category Capacitor
Package Category Other
Footprint Name Other - TZ03(B)
Released Date Mar 30, 2017
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

TZ03R300F169B00 Details

Manufacturer Part Number:
TZ03R300F169B00
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
End Of Life
Package Description:
,
Reach Compliance Code:
Unknown
ECCN Code:
EAR99
HTS Code:
8532.30.00.10
Manufacturer:
Murata Manufacturing Co Ltd
Additional Feature:
PERCENTAGE TOLERANCE ON C_MAX IS 0/+50
Adjuster Orientation:
VERTICAL
Capacitance-Max:
30 pF
Capacitance-Min:
5.2 pF
Capacitor Type:
VARIABLE CAPACITOR
Dielectric Material:
CERAMIC
Height:
4.8 mm
JESD-609 Code:
e3
Length:
6 mm
Mounting Feature:
THROUGH HOLE MOUNT
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-25 °C
Package Style:
Radial
Packing Method:
BULK
Positive Tolerance:
50%
Rated (DC) Voltage (URdc):
100 V
Surface Mount:
NO
Terminal Finish:
Tin (Sn)
Terminal Pitch:
5 mm
Terminal Shape:
SNAP-IN
Width:
6 mm

TZ03R300F169B00 Frequently Asked Questions (FAQs)

The recommended land pattern for the TZ03R300F169B00 can be found in the Murata Land Pattern Recommendation document, which provides guidelines for PCB layout and footprint design.
The TZ03R300F169B00 has a thermal resistance of 30°C/W, and it's recommended to use a thermal pad or heat sink to dissipate heat. A thermal interface material (TIM) can also be used to improve heat transfer.
The maximum operating temperature range for the TZ03R300F169B00 is -40°C to 125°C, but it's recommended to operate within the specified temperature range for optimal performance and reliability.
To ensure reliability in high-vibration environments, it's recommended to use a secure mounting method, such as soldering or adhesive bonding, and to follow Murata's guidelines for vibration testing and simulation.
The TZ03R300F169B00 has built-in ESD protection, but it's still recommended to follow standard ESD handling precautions, such as using an ESD wrist strap or mat, and storing the components in an ESD-safe environment.

Trust Checks

Expert Contribution

System Verified

Community Approved

TZ03R300F169B00 Overview

Use the download button to access the TZ03R300F169B00 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like TZ03R, or try a keyword search, such as Variable Capacitors

About Murata Electronics

Murata Manufacturing Co., Ltd. is a Japanese multinational company that specializes in the design, manufacturing, and sale of electronic components and solutions. Murata offers a wide range of electronic components and modules that are used in various industries and applications. Some of their key product categories include: capacitors, inductors, resistors, sensors, rf components and modules, and power devices.
