TZB4P400BB10R00 - Murata Electronics

Description: 8.5 ~ 40pF Trimmer Capacitor 100 V Top Surface Mount , 300 @ 1MHz , -25°C ~ 85°C

Download TZB4P400BB10R00 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
TZB4P400BB10R00 - Murata Electronics - PCB symbol
click to zoom

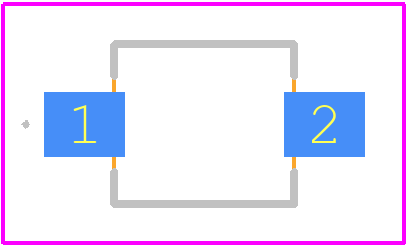

PCB Footprints
TZB4P400BB10R00 - Murata Electronics PCB footprint - Other - Other - 4.5mm x 4.0mm x 3.0mm
click to zoom
3D Models
TZB4P400BB10R00 - Murata Electronics - 3D model - Other - 4.5mm x 4.0mm x 3.0mm
click to zoom

TZB4P400BB10R00 Details

  • Manufacturer Part Number:

    TZB4P400BB10R00

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    , 2816

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.30.00.10

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    0

  • Adjuster Orientation:

    VERTICAL

  • Capacitance-Max:

    40 pF

  • Capacitance-Min:

    8.5 pF

  • Capacitor Type:

    VARIABLE CAPACITOR

  • Dielectric Material:

    CERAMIC

  • Height:

    3 mm

  • JESD-609 Code:

    e3

  • Length:

    4.5 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Style:

    SMT

  • Packing Method:

    TR, EMBOSSED, 7 INCH

  • Positive Tolerance:

    50%

  • Rated (DC) Voltage (URdc):

    100 V

  • Size Code:

    1816

  • Surface Mount:

    YES

  • Terminal Finish:

    TIN

  • Terminal Shape:

    GULL WING

  • Width:

    4 mm

TZB4P400BB10R00 Frequently Asked Questions (FAQs)

  • The recommended land pattern for the TZB4P400BB10R00 can be found in the Murata Land Pattern Recommendation document, which provides guidelines for PCB layout and footprint design.
  • To ensure reliability in high-temperature applications, it is recommended to follow the derating guidelines provided in the datasheet, and to consider using a thermal interface material to improve heat dissipation.
  • The maximum allowable voltage for the TZB4P400BB10R00 is 400V, as specified in the datasheet. Exceeding this voltage may result in damage to the component.
  • To prevent damage during assembly, it is recommended to handle the TZB4P400BB10R00 by the body, avoiding touching the leads or electrical contacts. It is also recommended to use an anti-static wrist strap or mat to prevent electrostatic discharge.
  • The typical lead time for delivery of the TZB4P400BB10R00 may vary depending on the region and availability. It is recommended to check with authorized distributors or Murata's sales representatives for the most up-to-date lead time information.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TZB4P400BB10R00 Overview

Use the download button to access the TZB4P400BB10R00 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TZB4P, or try a keyword search, such as Variable Capacitors

About Murata Electronics

Murata Manufacturing Co., Ltd. is a Japanese multinational company that specializes in the design, manufacturing, and sale of electronic components and solutions. Murata offers a wide range of electronic components and modules that are used in various industries and applications. Some of their key product categories include: capacitors, inductors, resistors, sensors, rf components and modules, and power devices.
