U62256AS2C07LLG1 - Alliance Memory

U62256AS2C07LLG1 Details

• Manufacturer Part Number:

  U62256AS2C07LLG1

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  SOIC

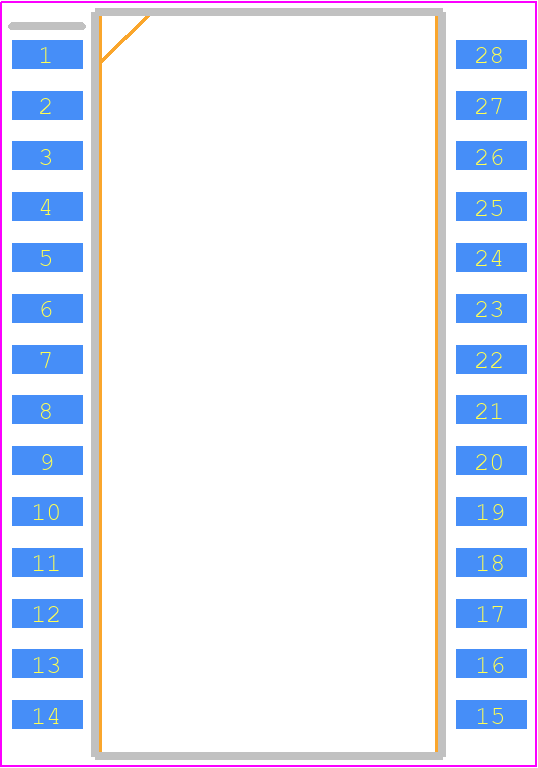

• Package Description:

  0.330 INCH, GREEN, SOP2-28

• Pin Count:

  28

• ECCN Code:

  EAR99

• HTS Code:

  8542.32.00.41

• Manufacturer:

  Alliance Memory Inc

• YTEOL:

  0

• Access Time-Max:

  70 ns

• JESD-30 Code:

  R-PDSO-G28

• Length:

  18.1 mm

• Memory Density:

  262144 bit

• Memory IC Type:

  STANDARD SRAM

• Memory Width:

  8

• Moisture Sensitivity Level:

  3

• Number of Functions:

  1

• Number of Terminals:

  28

• Number of Words:

  32768 words

• Number of Words Code:

  32000

• Operating Mode:

  ASYNCHRONOUS

• Operating Temperature-Max:

  70 °C

• Organization:

  32KX8

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Parallel/Serial:

  PARALLEL

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  2.54 mm

• Supply Voltage-Max (Vsup):

  5.5 V

• Supply Voltage-Min (Vsup):

  4.5 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Width:

  8.75 mm
