- Part Number U77-A1618-2001
- Manufacturer Amphenol
- Pin Count 20
- Part Category Connector
- Package Category Other
- Footprint Name Other - U77-A1618-2001-2
- Released Date Nov 3, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
U77-A1618-2001 Details
-
Manufacturer Part Number:
U77-A1618-2001
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Reach Compliance Code:
Unknown
-
Manufacturer:
Amphenol Corporation
-
Assembly Item Name:
CAGE ASSEMBLY
-
Connector Support Type:
CONNECTOR ACCESSORY
-
DIN Conformance:
NO
-
Finish Thickness:
100
-
IEC Conformance:
NO
-
MIL Conformance:
NO
U77-A1618-2001 Frequently Asked Questions (FAQs)
-
The recommended torque value for the screw terminals is 0.5-1.5 Nm (4-12 in-lbs). It's essential to follow this range to ensure proper connection and prevent damage to the terminals.
-
Yes, the U77-A1618-2001 is designed to withstand high-vibration environments. It meets the requirements of MIL-DTL-5015, which includes vibration testing. However, it's essential to follow proper installation and mounting procedures to ensure the connector's reliability.
-
The U77-A1618-2001 has a rating of IP67, which means it's protected against dust and can withstand immersion in water up to 1 meter for 30 minutes. However, it's recommended to use additional sealing or protective measures for extended outdoor use or in harsh environments.
-
The operating temperature range for the U77-A1618-2001 is -55°C to 125°C (-65°F to 257°F). It's essential to ensure that the connector is used within this range to maintain its performance and reliability.
-
While the datasheet specifies a recommended wire gauge, it's possible to use a different gauge. However, it's crucial to ensure that the wire gauge meets the connector's current rating and that the wire is properly terminated to prevent damage or electrical issues.
Trust Checks
Expert Contribution
System Verified
Community Approved
U77-A1618-2001 Overview

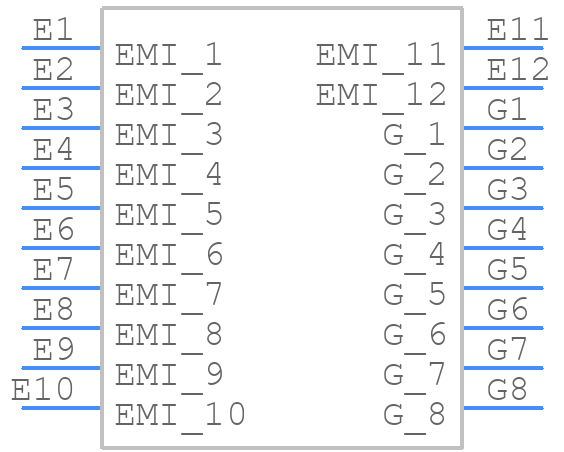

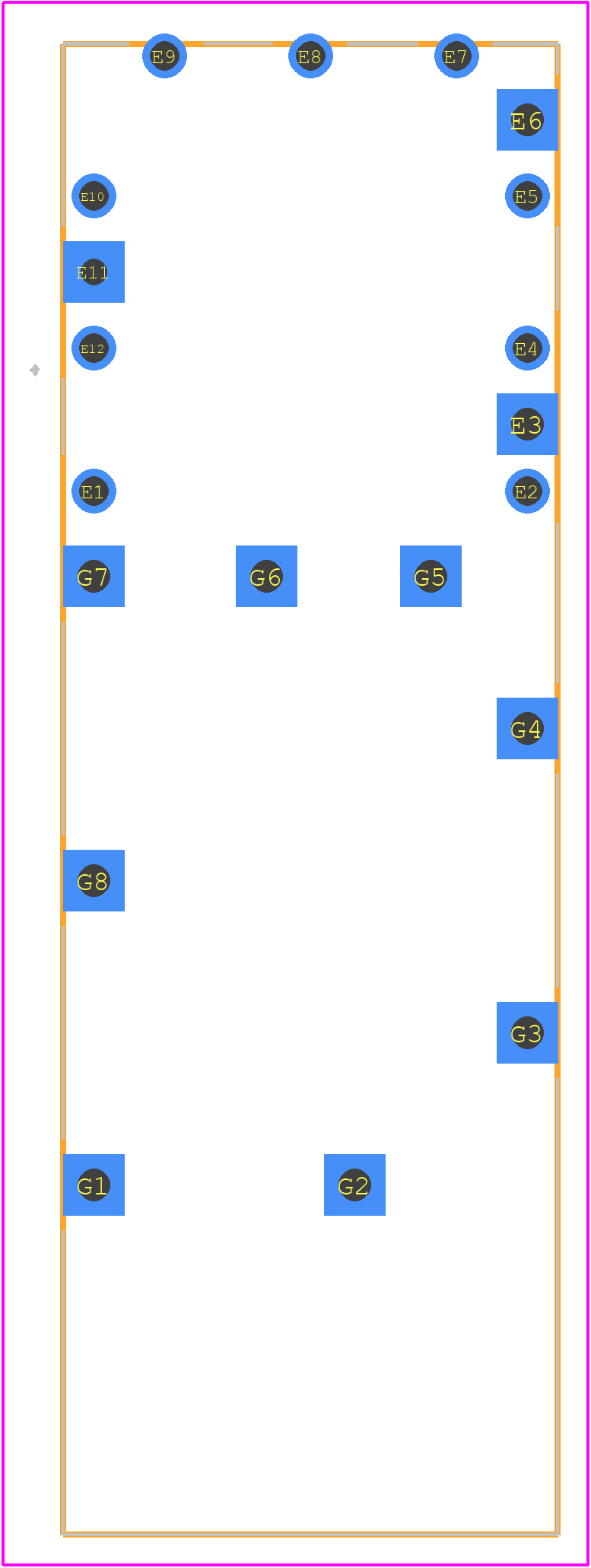

Use the download button to access the U77-A1618-2001 schematic symbol, PCB footprint, and 3D model.
