U77-A261M-2071 - Amphenol

Description: I/O Connectors One Row SFP Cage Inline 1x2

Download U77-A261M-2071 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
U77-A261M-2071 - Amphenol - PCB symbol
click to zoom
PCB Footprints

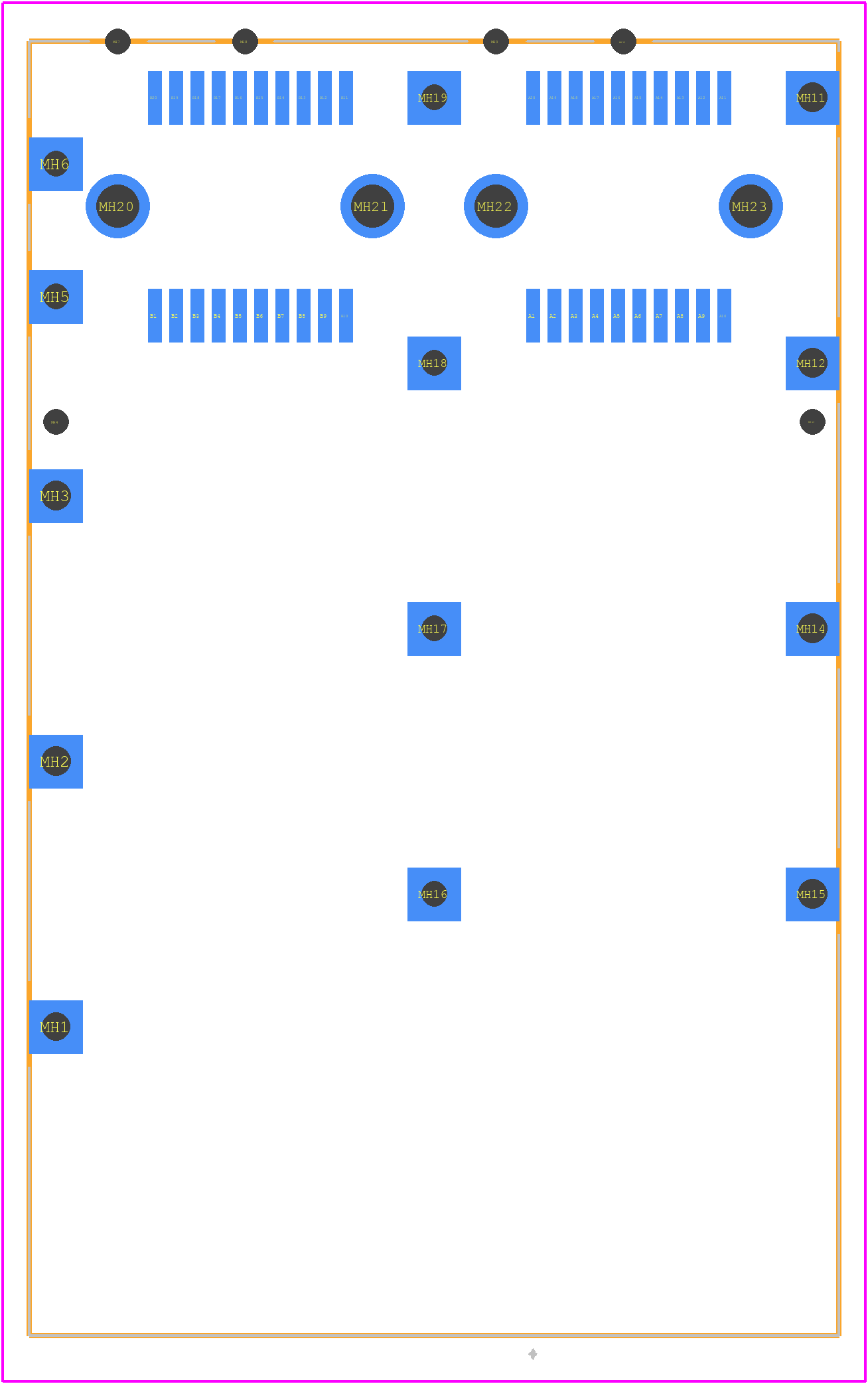

U77-A261M-2071 - Amphenol PCB footprint - Other - Other - U77-A261M-2071-1
click to zoom
3D Models
U77-A261M-2071 - Amphenol - 3D model - Other - U77-A261M-2071-1
click to zoom

U77-A261M-2071 Details

  • Manufacturer Part Number:

    U77-A261M-2071

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Unknown

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Amphenol Corporation

  • Assembly Item Name:

    CAGE ASSEMBLY

  • Connector Support Type:

    CONNECTOR ACCESSORY

  • DIN Conformance:

    NO

  • Finish Thickness:

    100

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Material:

    COPPER ALLOY

  • Mounting Style:

    RIGHT ANGLE

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Terminal Type:

    PRESS FIT

U77-A261M-2071 Frequently Asked Questions (FAQs)

  • The recommended torque value is 10-12 in-lbs (1.1-1.4 Nm) for the U77-A261M-2071 connector. However, it's essential to consult the specific application requirements and follow the manufacturer's guidelines.
  • Yes, the U77-A261M-2071 connector is designed to withstand high-vibration environments. It features a ruggedized design and a secure locking mechanism to ensure reliable connections in demanding applications.
  • The U77-A261M-2071 connector is designed to operate in a wide range of temperatures (-40°C to 125°C) and can withstand high humidity. However, it's essential to consult the datasheet and manufacturer's guidelines for specific environmental requirements.
  • The U77-A261M-2071 connector is rated for a minimum of 500 mating cycles. However, the actual mating cycle life may vary depending on the application, usage, and environmental conditions.
  • The U77-A261M-2071 connector is designed to be compatible with other connectors from Amphenol Corporation that share the same interface and mating configuration. However, it's essential to consult the datasheet and manufacturer's guidelines for specific compatibility information.
