UA2-5NU footprint, schematic symbol and 3D model by IMO PRECISION CONTROLS

Symbol

click to zoom

PCB Footprints

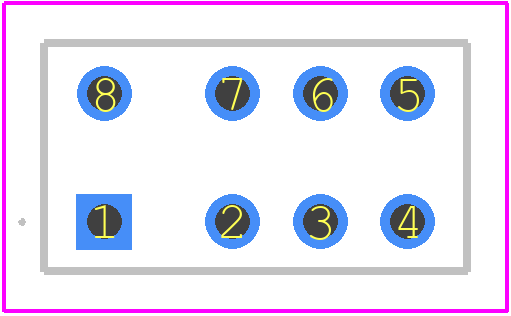

UA2-5NU - IMO PRECISION CONTROLS PCB footprint - Other - Other - UA2-5NU-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for UA2-5NU
Part Number UA2-5NU
Manufacturer IMO PRECISION CONTROLS
Pin Count 8
Part Category Relay or Contactor
Package Category Other
Footprint Name Other - UA2-5NU-1
Released Date Nov 30, 2022
Last Modified Date Mar 6, 2026 10:18 AM UTC
Pinout / Pin List Click Here (Member Only)

UA2-5NU Details

Manufacturer Part Number:
UA2-5NU
Manufacturer:
IMO Precision Controls Ltd

Trust Checks

Expert Contribution

System Verified

Community Approved

UA2-5NU Overview

Use the download button to access the UA2-5NU schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like UA2-5, or try a keyword search, such as Power/Signal Relays
