UA8263-AL - COILCRAFT

Description: Flyback Transformer, for TI TIDA-01344, isolation, SMT, RoHS

Download UA8263-AL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

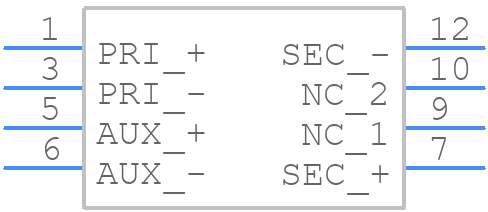

Symbol
UA8263-AL - COILCRAFT - PCB symbol
click to zoom

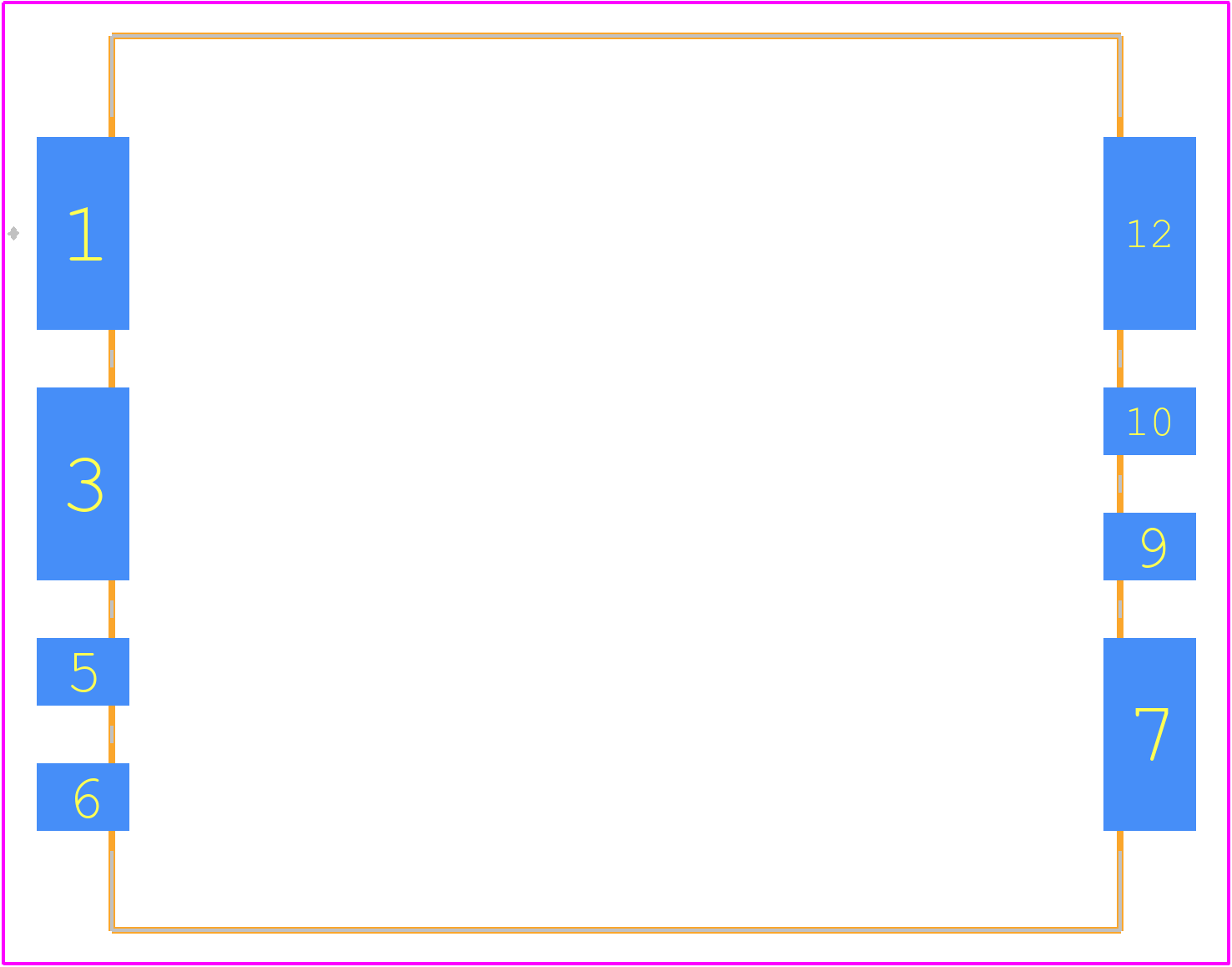

PCB Footprints
UA8263-AL - COILCRAFT PCB footprint - Other - Other - UA8263-AL-2
click to zoom
3D Models
UA8263-AL - COILCRAFT - 3D model - Other - UA8263-AL-2
click to zoom

UA8263-AL Details

  • Manufacturer Part Number:

    UA8263-AL

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Coilcraft Inc

  • YTEOL:

    6.55

  • Additional Feature:

    LENGTH, WIDTH AND HEIGHT DIMENSION INCLUDE TERMINAL ALSO

  • Approvals:

    AEC-Q200

  • Height:

    13.6 mm

  • Input Voltage-Max:

    80 V

  • Input Voltage-Min:

    10 V

  • Length:

    34.29 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Primary Winding:

    2

  • Number of Secondary Winding:

    2

  • Operating Frequency-Max:

    333 kHz

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage 1:

    12 V

  • Packing Method:

    TRAY

  • Power Rating:

    24 W

  • Primary Inductance:

    35 µH

  • Surface Mount:

    YES

  • Transformer Type:

    SMPS TRANSFORMER

  • Width:

    26.75 mm

UA8263-AL Frequently Asked Questions (FAQs)

  • The recommended PCB land pattern for the UA8263-AL can be found in the Coilcraft Land Pattern Recommendation document, which provides a detailed layout and dimension guidelines for optimal performance.
  • The UA8263-AL is rated for operation up to 125°C, but its inductance and Q values may degrade at higher temperatures. Consult the Coilcraft Temperature Derating Guidelines for more information.
  • While the UA8263-AL is designed for high-frequency applications, its performance may degrade above 1 GHz. Coilcraft recommends using their higher-frequency inductors, such as the 0402HP or 0603HP series, for applications above 1 GHz.
  • The SRF of the UA8263-AL is not explicitly stated in the datasheet, but it can be estimated using the inductor's inductance and capacitance values. Contact Coilcraft's technical support for assistance with SRF calculations.
  • Yes, the UA8263-AL is compatible with lead-free soldering processes and meets the requirements of the RoHS directive.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

UA8263-AL Overview

Use the download button to access the UA8263-AL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UA826, or try a keyword search, such as SMPS Transformers

About COILCRAFT

Colicraft designs and manufactures high performing magnectic components, RF chip inductors, power magnectics, and filters. Coilcraft has engineering, manufacturing, and distribution facilities in North America, Asia, and Europe.
