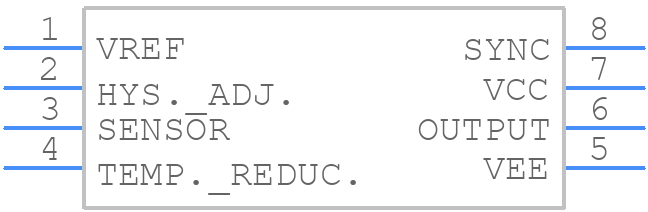

UAA2016PG - onsemi

UAA2016PG Details

• Manufacturer Part Number:

  UAA2016PG

• Brand Name:

  onsemi

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  8 LEAD PDIP

• Pin Count:

  8

• Manufacturer Package Code:

  626-05

• Country Of Origin:

  Mainland China

• HTS Code:

  8542.39.00.01

• Factory Lead Time:

  19 Weeks

• Manufacturer:

  onsemi

• Analog IC - Other Type:

  ANALOG CIRCUIT

• JESD-30 Code:

  R-PDIP-T8

• JESD-609 Code:

  e3

• Length:

  9.78 mm

• Neg Supply Voltage-Max (Vsup):

  -10 V

• Neg Supply Voltage-Min (Vsup):

  -8 V

• Neg Supply Voltage-Nom (Vsup):

  -9 V

• Number of Functions:

  1

• Number of Terminals:

  8

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -20 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DIP

• Package Equivalence Code:

  DIP8,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  4.45 mm

• Supply Current-Max (Isup):

  15 mA

• Surface Mount:

  NO

• Temperature Grade:

  OTHER

• Terminal Finish:

  MATTE TIN

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Width:

  7.62 mm
