The recommended torque value is 0.5-0.7 Nm (5-7 in-lbs) for the screw locks on the UB-20PMFP-SC8001.
Yes, the UB-20PMFP-SC8001 is designed to withstand high-vibration environments and is suitable for use in applications with vibration levels up to 10G.
The UB-20PMFP-SC8001 has an operating temperature range of -55°C to +125°C (-133°F to +257°F).
Yes, the UB-20PMFP-SC8001 is designed to support high-speed signals up to 10 Gbps and is suitable for use in high-speed applications.
The UB-20PMFP-SC8001 has an IP67 rating, meaning it is protected against dust and water ingress up to 1 meter for 30 minutes.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UB-20PMFP-SC8001 Overview

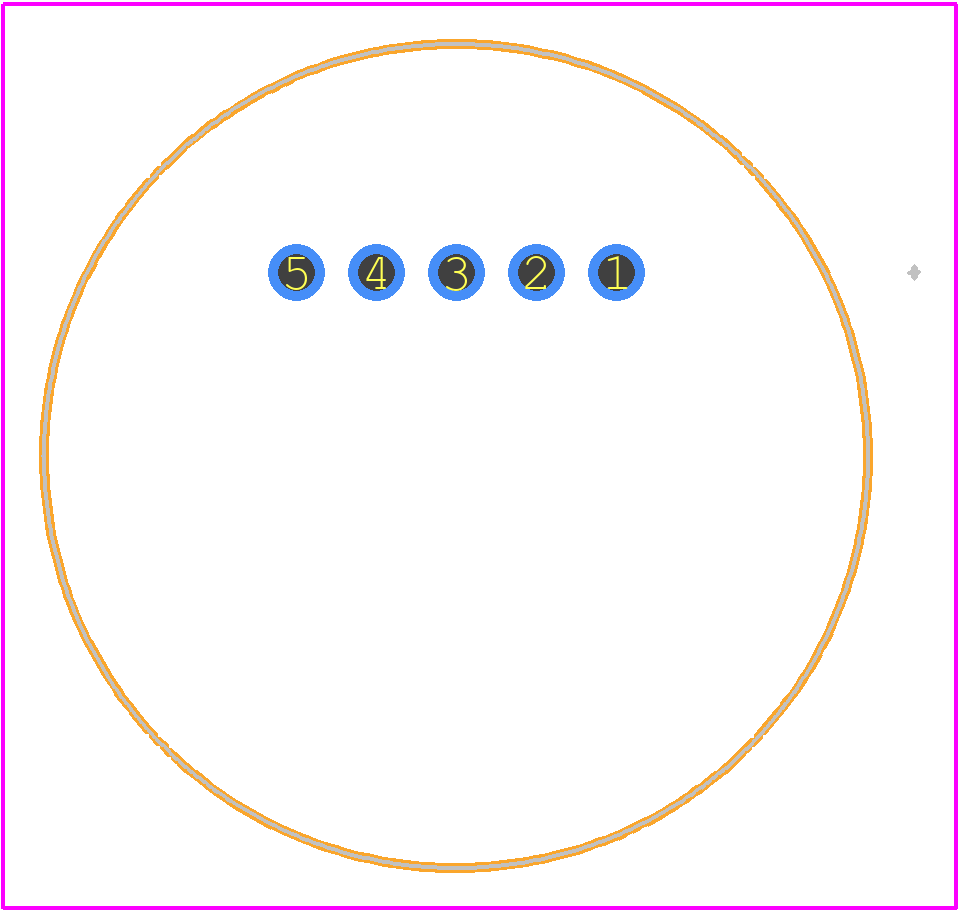

Use the download button to access the UB-20PMFP-SC8001 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UB-20,
or try a keyword search, such as Telecom and Datacom Connectors
About Amphenol
Amphenol Corporation is one of the largest manufacturers of interconnect products in the world. Amphenol designs, manufactures, and markets electrical, electronic, and fiber optic connectors, cable assemblies, and interconnect systems.
The company serves a wide range of industries, including aerospace, automotive, telecommunications, military and defense, industrial, and consumer electronics.
