UB1112C-8FDH-4F footprint, schematic symbol and 3D model by Foxconn

Symbol

click to zoom

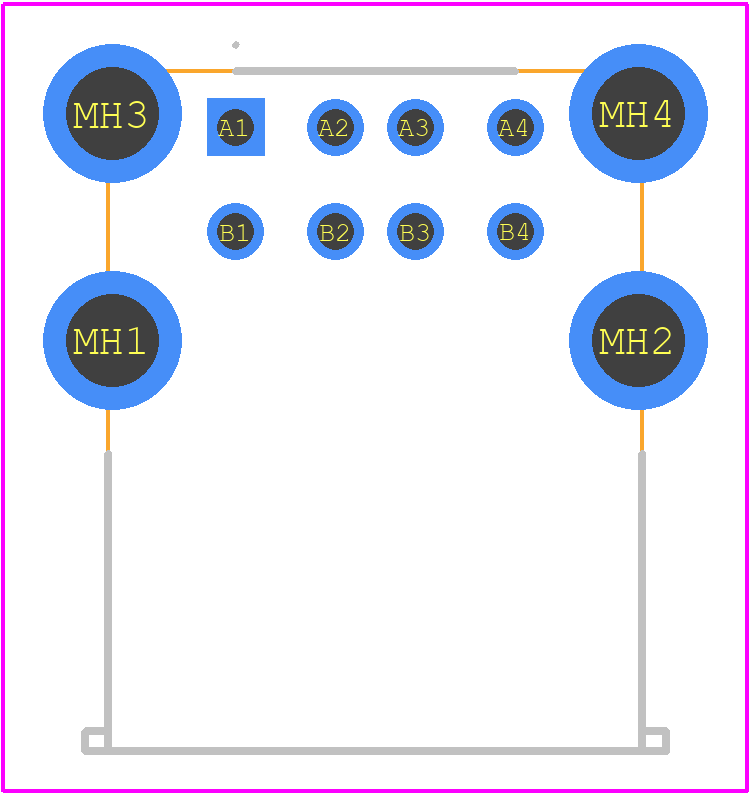

PCB Footprints

UB1112C-8FDH-4F - Foxconn PCB footprint - Other - Other - UB1112C-8FDH-4F-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for UB1112C-8FDH-4F
Part Number UB1112C-8FDH-4F
Manufacturer Foxconn
Pin Count 12
Part Category Connector
Package Category Other
Footprint Name Other - UB1112C-8FDH-4F-2
Released Date Nov 7, 2025
Last Modified Date Dec 4, 2025 10:04 AM UTC
Pinout / Pin List Click Here (Member Only)

UB1112C-8FDH-4F Details

Manufacturer Part Number:
UB1112C-8FDH-4F
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Manufacturer:
Foxconn Interconnect Technology Limited
Connector Type:
USB CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Finish Termination:
NOT APPLICABLE
Contact Gender:
FEMALE
Contact Material:
COPPER ALLOY
DIN Conformance:
NO
Empty Shell:
NO
Filter Feature:
NO
IEC Conformance:
NO
Insulator Material:
POLYETHYLENE
MIL Conformance:
NO
Mixed Contacts:
NO
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD
Option:
GENERAL PURPOSE
Termination Type:
SOLDER
Total Number of Contacts:
8
UL Flammability Code:
94V-0

UB1112C-8FDH-4F Frequently Asked Questions (FAQs)

The recommended mating sequence is to mate the guide pins first, followed by the signal pins, to ensure proper alignment and prevent damage to the connector.
Yes, the UB1112C-8FDH-4F connector is designed to withstand high-vibration environments, with a vibration rating of 10-2000 Hz, 10G peak acceleration.
The maximum operating temperature range for the UB1112C-8FDH-4F connector is -40°C to 125°C, with a storage temperature range of -40°C to 150°C.
Yes, the UB1112C-8FDH-4F connector is compatible with lead-free soldering processes, with a peak reflow temperature of 260°C.
The typical insertion force for the UB1112C-8FDH-4F connector is 1.5 N (newtons) per contact, with a maximum insertion force of 3.5 N per contact.

Trust Checks

Community Provided

System Verified

Community Approved

UB1112C-8FDH-4F Overview

Use the download button to access the UB1112C-8FDH-4F schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like UB111, or try a keyword search, such as Telecom and Datacom Connectors
