UB16SKW03N-C - NKK Switches

UB16SKW03N-C Details

• Manufacturer Part Number:

  UB16SKW03N-C

• Brand Name:

  NKK Switches

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Country Of Origin:

  Philippines

• ECCN Code:

  EAR99

• HTS Code:

  8536.50.90.31

• Manufacturer:

  NKK Switches

• YTEOL:

  7

• Actuator Color:

  RED

• Actuator Length:

  0.098 inch

• Actuator Material:

  POLYCARBONATE

• Actuator Travel:

  2.3114 mm

• Actuator Type:

  PUSHBUTTON

• Body Breadth:

  15.24 mm

• Body Height:

  16.4846 mm

• Body Length or Diameter:

  15.24 mm

• Center Contact Material:

  SILVER

• Center Contact Plating:

  SILVER

• Contact (AC) Max Rating R Load:

  5A@250VAC

• Contact Current(AC)-Max:

  5 A

• Contact Current(DC)-Max:

  5 A

• Contact (DC) Max Rating R Load:

  5A@30VDC

• Contact Function:

  ON-ON

• Contact Resistance:

  0.05 mΩ

• Contact Timing:

  QUICK-MAKE/-BREAK

• Contact Voltage(AC)-Max:

  250 V

• Contact Voltage(DC)-Max:

  30 V

• Dielectric Withstand Volts:

  1500VAC V

• Electrical Life:

  10000 Cycle(s)

• End Contact Material:

  SILVER

• End Contact Plating:

  SILVER

• Housing Material:

  GLASS FILLED REINFORCED NYLON

• Illumination:

  NON-ILLUMINATED

• Insulation Resistance:

  200000000 Ω

• Insulator Material:

  GLASS FILLED DIALLYL PHTHALATE

• Mounting Feature:

  THROUGH HOLE-STRAIGHT

• Operating Temperature-Max:

  70 °C

• Operating Temperature-Min:

  -20 °C

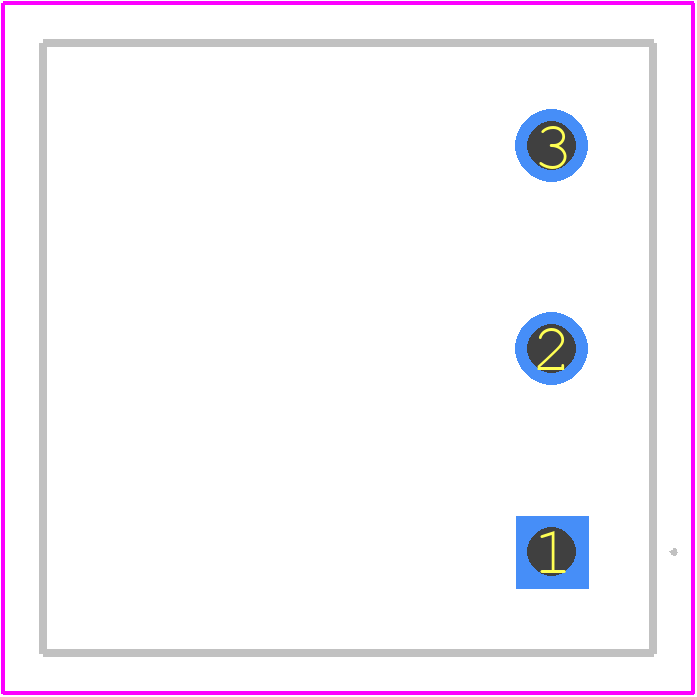

• PCB Hole Count:

  3

• Sealing:

  EPOXY

• Solderability:

  WAVE

• Surface Mount:

  NO

• Switch Action:

  MOMENTARY

• Switch Function:

  SPDT

• Switch Type:

  PUSHBUTTON SWITCH

• Terminal Length:

  0.157 inch

• Terminal Material:

  BRASS

• Termination Type:

  SOLDER
