UB25SKW035F-JF - NKK Switches

UB25SKW035F-JF Details

• Manufacturer Part Number:

  UB25SKW035F-JF

• Brand Name:

  NKK Switches

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8536.50.90.31

• Manufacturer:

  NKK Switches

• YTEOL:

  8

• Actuator Length:

  0.098 inch

• Actuator Material:

  PHOSPHOR BRONZE

• Actuator Travel:

  2.3 mm

• Actuator Type:

  SQUARE BUTTON TYPE

• Additional Feature:

  CSA; UL

• Body Breadth:

  12 mm

• Body Height:

  10 mm

• Body Length or Diameter:

  15.24 mm

• Center Contact Material:

  COPPER/SILVER ALLOY

• Center Contact Plating:

  GOLD

• Contact (AC) Max Rating R Load:

  5A@250VAC

• Contact Current(AC)-Max:

  5 A

• Contact Current(DC)-Max:

  5 A

• Contact (DC) Max Rating R Load:

  5A@30VDC

• Contact Function:

  ON-(ON)

• Contact Resistance:

  0.05 mΩ

• Contact Timing:

  BREAK-BEFORE-MAKE

• Contact Voltage(AC)-Max:

  250 V

• Contact Voltage(DC)-Max:

  30 V

• Dielectric Withstand Volts:

  1500VAC V

• Electrical Life:

  10000 Cycle(s)

• End Contact Material:

  COPPER/SILVER ALLOY

• End Contact Plating:

  GOLD

• Housing Material:

  GLASS FILLED POLYAMIDE

• Illumination:

  GREEN LED

• Insulation Resistance:

  200000000 Ω

• Insulator Material:

  GLASS FILLED LIQUID CRYSTAL POLYMER

• Mounting Feature:

  THROUGH HOLE-STRAIGHT

• Operating Force-Max:

  2.55 N

• Operating Temperature-Max:

  70 °C

• Operating Temperature-Min:

  -20 °C

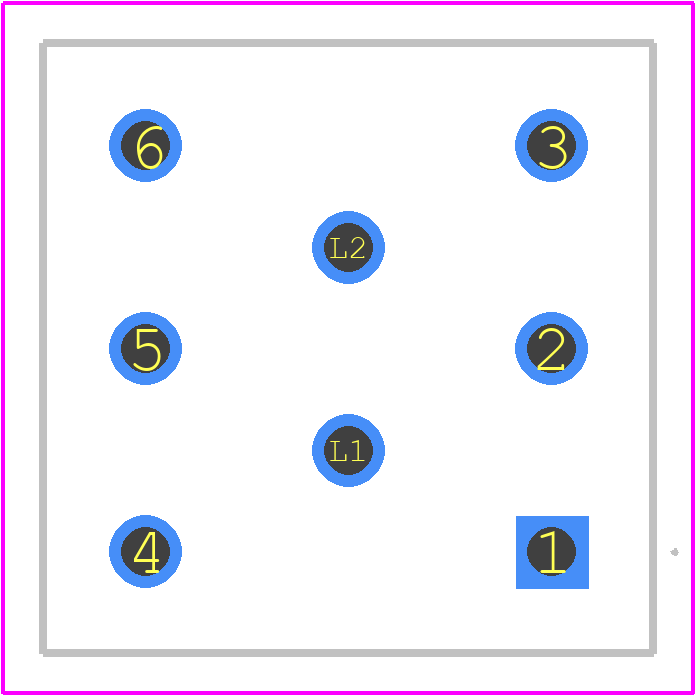

• PCB Hole Count:

  8

• Sealing:

  EPOXY TERMINAL SEALED; MOISTURE PROOF

• Solderability:

  WAVE

• Surface Mount:

  NO

• Switch Action:

  MOMENTARY

• Switch Function:

  DPDT

• Switch Type:

  PUSHBUTTON SWITCH

• Terminal Length:

  0.157 inch

• Terminal Material:

  PHOSPHOR BRONZE

• Termination Type:

  SOLDER
