Description:Latching PWM for Cycle-By-Cycle Current Limiting; Oscillator Frequency Guaranteed at 250 kHz; Low Startup and Operating Current; Trimmed Oscillator for Precise Frequency Control; Internally Trimmed Reference with Undervoltage Lockout; Undervoltage Lockout with Hysteresis; Automatic Feed Forward Compensation; High Current Totem Pole Output; Current Mode Operation to 500 kHz; Pb-Free Packages are Available
The UC2843BD1G is a high-frequency switching regulator, and as such, proper PCB layout and design are crucial for optimal performance. It is recommended to follow the layout guidelines provided in the datasheet, including keeping the power stage components close together, using a solid ground plane, and minimizing loop areas. Additionally, it is recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
The choice of inductor value and type depends on the specific application requirements, including the input voltage, output voltage, and output current. A good starting point is to use the inductor selection guide provided in the datasheet, which provides a formula to calculate the minimum inductor value based on the output current and switching frequency. Additionally, consider using a shielded inductor to reduce EMI.
The UC2843BD1G is rated for operation from -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and the thermal design. It is recommended to follow the thermal design guidelines provided in the datasheet and to ensure that the device is properly heat-sinked to maintain a safe junction temperature.
To ensure stability, it is recommended to follow the compensation network design guidelines provided in the datasheet, including the selection of the compensation capacitor and resistor values. Additionally, it is recommended to use a type III compensation network, which provides a higher phase margin and improved stability.
The recommended input capacitor type is a low-ESR ceramic capacitor, such as an X5R or X7R dielectric capacitor. The value depends on the input voltage and output current, but a good starting point is a 10uF to 22uF capacitor. It is recommended to follow the input capacitor selection guidelines provided in the datasheet.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UC2843BD1G Overview

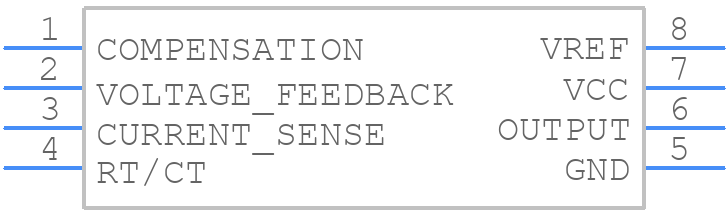

Use the download button to access the UC2843BD1G schematic symbol, PCB footprint, and 3D model.
