The UC2843BDG is a high-frequency switching regulator, and as such, proper PCB layout and design are crucial for optimal performance. It is recommended to follow the layout guidelines provided in the datasheet, including keeping the power stage components close together, using a solid ground plane, and minimizing loop areas. Additionally, it is recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
The choice of inductor value and type depends on the specific application requirements, including the input voltage, output voltage, and output current. A good starting point is to use the inductor selection guide provided in the datasheet, which provides a formula to calculate the minimum inductance value required. Additionally, consider using a shielded inductor to reduce EMI and a low-ESR inductor to minimize energy losses.
The UC2843BDG is rated for operation from -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and the thermal design. It is recommended to follow the thermal design guidelines provided in the datasheet and to ensure that the device is properly heat-sinked to maintain a safe operating temperature.
To ensure stability, it is recommended to follow the compensation network design guidelines provided in the datasheet, including the selection of the correct compensation components and the placement of the feedback components. Additionally, it is recommended to use a low-ESR output capacitor and to minimize the output capacitor's equivalent series resistance (ESR) to reduce the risk of oscillation.
The UC2843BDG is capable of delivering up to 3A of output current, but the actual output current capability depends on the specific application requirements, including the input voltage, output voltage, and thermal design. It is recommended to follow the output current rating guidelines provided in the datasheet and to ensure that the device is properly heat-sinked to maintain a safe operating temperature.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UC2843BDG Overview

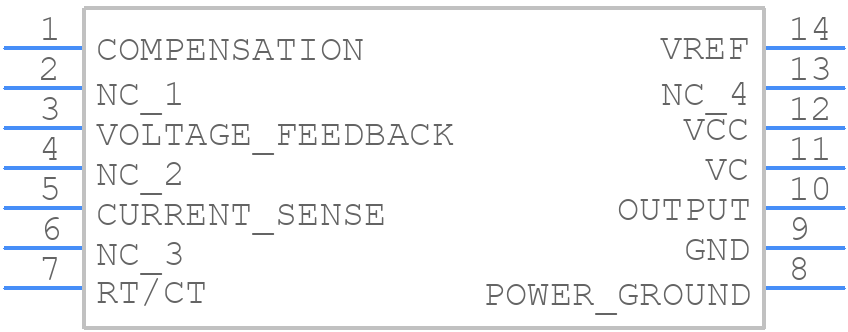

Use the download button to access the UC2843BDG schematic symbol, PCB footprint, and 3D model.
