UC2844BD1013TR - STMicroelectronics

Description: High performance current mode PWM controller

Download UC2844BD1013TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

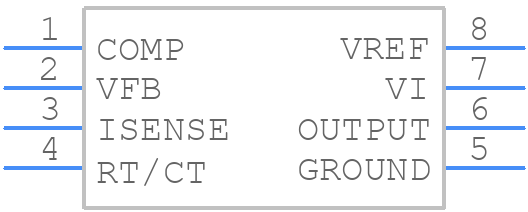

Symbol
UC2844BD1013TR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
UC2844BD1013TR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO8 HEIGHT 1.75
click to zoom
3D Models
UC2844BD1013TR - STMicroelectronics - 3D model - Small Outline Packages - SO8 HEIGHT 1.75
click to zoom

UC2844BD1013TR Details

  • Manufacturer Part Number:

    UC2844BD1013TR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SO-8

  • Pin Count:

    8

  • Country Of Origin:

    Morocco

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    7

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    30 V

  • Input Voltage-Min:

    11 V

  • Input Voltage-Nom:

    15 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Output Current-Max:

    1 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    SINGLE

  • Switching Frequency-Max:

    500 kHz

  • Temperature Grade:

    COMMERCIAL EXTENDED

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

UC2844BD1013TR Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the UC2844BD1013TR is 12V to 35V, with a maximum voltage rating of 40V.
  • To ensure stable operation in high-temperature environments, it is recommended to use a heat sink and ensure good thermal conductivity between the device and the heat sink. Additionally, reducing the switching frequency and using a low-ESR output capacitor can help reduce thermal stress.
  • The maximum output current capability of the UC2844BD1013TR is 3A, but this can be limited by the thermal design and the output capacitor selection.
  • To optimize the layout and PCB design for the UC2844BD1013TR, it is recommended to follow good PCB design practices, such as using a solid ground plane, minimizing trace lengths and widths, and using a low-ESR output capacitor. Additionally, placing the input and output capacitors close to the device and using a shielded inductor can help reduce EMI.
  • When selecting the output capacitor for the UC2844BD1013TR, key considerations include the capacitor's equivalent series resistance (ESR), capacitance value, and voltage rating. A low-ESR capacitor with a high capacitance value and a voltage rating that exceeds the maximum output voltage is recommended.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

UC2844BD1013TR Overview

Use the download button to access the UC2844BD1013TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UC284, or try a keyword search, such as Switching Regulator or Controllers
