Description:High Current Totem Pole Output; Current Mode Operation to 500 kHz Output Switching Frequency; Latching PWM for Cycle-By-Cycle Current Limiting; Automatic Feed Forward Compensation; Internally Trimmed Reference with Undervoltage Lockout; Undervoltage Lockout with Hysteresis; Oscillator Frequency Guaranteed at 250 kHz; Low Startup and Operating Current; Trimmed Oscillator for Precise Frequency Control; Output Deadtime Adjustable from 50% to 70%; Pb-Free Packages are Available
A good PCB layout for the UC2844BDR2G involves keeping the input and output stages separate, using a star-ground configuration, and placing the IC close to the input capacitors. Additionally, using a ground plane and minimizing trace lengths can help reduce EMI.
The choice of external components for the UC2844BDR2G depends on the specific application requirements. For example, the input capacitor should be chosen based on the input voltage and current requirements, while the output inductor and capacitor should be selected based on the output voltage and current requirements. The datasheet provides guidelines for selecting these components.
The UC2844BDR2G is rated for operation from -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and the thermal design of the system. It's recommended to follow the thermal design guidelines in the datasheet to ensure reliable operation.
Troubleshooting issues with the UC2844BDR2G involves checking the input and output voltages, currents, and waveforms, as well as verifying the proper operation of the internal oscillator and feedback loop. The datasheet provides a troubleshooting guide and application notes that can help identify and resolve common issues.
Yes, the UC2844BDR2G is qualified for use in high-reliability and automotive applications. It meets the requirements of AEC-Q100 and is manufactured using a robust process that ensures high reliability and low defect rates.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UC2844BDR2G Overview

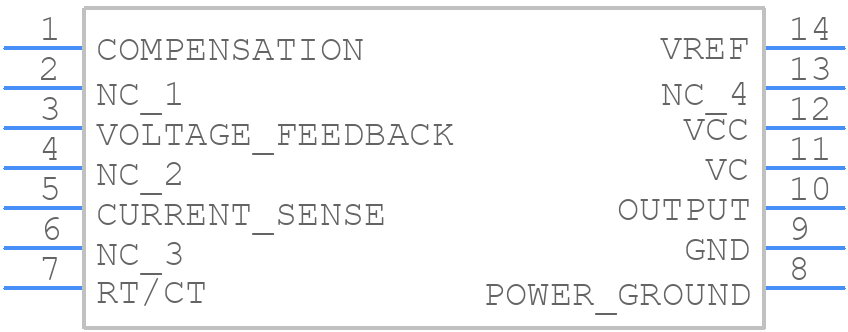

Use the download button to access the UC2844BDR2G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UC284,
or try a keyword search, such as Switching Regulator or Controllers
