UC3843BD1 - STMicroelectronics

Description: High performance current mode PWM controller

Download UC3843BD1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

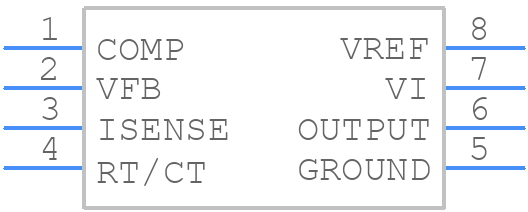

Symbol
UC3843BD1 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
UC3843BD1 - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - 8-Pin SO_
click to zoom
3D Models
UC3843BD1 - STMicroelectronics - 3D model - Small Outline Packages - 8-Pin SO_
click to zoom

UC3843BD1 Details

  • Manufacturer Part Number:

    UC3843BD1

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOP, SOP8,.25

  • Pin Count:

    8

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Morocco

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    7

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    30 V

  • Input Voltage-Min:

    8.2 V

  • Input Voltage-Nom:

    15 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Output Current-Max:

    1 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    SINGLE

  • Switching Frequency-Max:

    500 kHz

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

UC3843BD1 Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the UC3843BD1 is 12V to 28V, with a maximum voltage rating of 30V.
  • The choice of resistor values for the oscillator circuit depends on the desired switching frequency. A higher resistance value will result in a lower switching frequency, while a lower resistance value will result in a higher switching frequency. A good starting point is to use a 2.2kΩ resistor for a 50kHz switching frequency.
  • The soft-start pin (SS) is used to gradually increase the output voltage of the converter during startup, reducing inrush current and electromagnetic interference (EMI). To use the soft-start pin, connect a capacitor from the SS pin to ground and a resistor from the SS pin to the output voltage. The capacitor value should be around 10nF to 100nF, and the resistor value should be around 1kΩ to 10kΩ.
  • To compensate for the voltage drop across the current sense resistor (RSENSE), you can add a voltage offset to the current sense signal. This can be done by adding a voltage source in series with the current sense resistor, or by using an op-amp to amplify the current sense signal.
  • The maximum current rating of the UC3843BD1 is 1A, but this can be increased by using an external transistor or MOSFET to boost the current capability.
