1.60 X 1.60 MM, 0.60 MM HEIGHT, ROHS COMPLIANT, ULTRA SMALL, SLP1616P6, 6 PIN
Pin Count:
6
Country Of Origin:
Mainland China
ECCN Code:
EAR99
HTS Code:
8541.10.00.50
Manufacturer:
Semtech Corporation
YTEOL:
6
Additional Feature:
LOW LEAKAGE CURRENT, LOW CAPACITANCE
Breakdown Voltage-Min:
6 V
Case Connection:
ANODE
Clamping Voltage-Max:
12 V
Configuration:
COMMON ANODE, 6 ELEMENTS
Diode Element Material:
SILICON
Diode Type:
TRANS VOLTAGE SUPPRESSOR DIODE
JESD-30 Code:
S-PDSO-N6
JESD-609 Code:
e4
Moisture Sensitivity Level:
1
Non-rep Peak Rev Power Dis-Max:
100 W
Number of Elements:
6
Number of Terminals:
6
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Package Body Material:
PLASTIC/EPOXY
Package Shape:
SQUARE
Package Style:
SMALL OUTLINE
Peak Reflow Temperature (Cel):
260
Polarity:
UNIDIRECTIONAL
Qualification Status:
Not Qualified
Rep Pk Reverse Voltage-Max:
5 V
Surface Mount:
YES
Technology:
AVALANCHE
Terminal Finish:
NICKEL PALLADIUM GOLD
Terminal Form:
NO LEAD
Terminal Position:
DUAL
UCLAMP0506P.TCT Frequently Asked Questions (FAQs)
A good PCB layout for the UCLAMP0506P.TCT involves keeping the input and output traces as short as possible, using a solid ground plane, and minimizing the distance between the device and the protection circuitry. Additionally, it's recommended to use a common ground plane for the input and output stages.
The UCLAMP0506P.TCT has built-in ESD protection on the input pins, which can withstand ESD strikes up to ±8 kV contact discharge and ±15 kV air discharge, according to the IEC 61000-4-2 standard.
The UCLAMP0506P.TCT is rated for operation over a temperature range of -40°C to +125°C, making it suitable for use in a wide range of applications, including automotive and industrial systems.
Yes, the UCLAMP0506P.TCT is designed to support high-speed data transmission rates up to 10 Gbps, making it suitable for use in high-speed data transmission applications such as USB, SATA, and PCIe.
The UCLAMP0506P.TCT has built-in overvoltage protection (OVP) and undervoltage protection (UVP) circuits that detect and respond to voltage anomalies, protecting the downstream circuitry from damage.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCLAMP0506P.TCT Overview

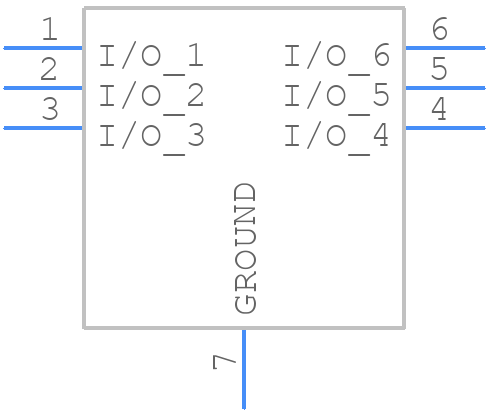

Use the download button to access the UCLAMP0506P.TCT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCLAM,
or try a keyword search, such as Transient Suppressors
