1.60 X 1.60 MM, 0.58 MM HEIGHT, ROHS COMPLIANT, SLP-6
Pin Count:
6
Country Of Origin:
Mainland China
ECCN Code:
EAR99
HTS Code:
8541.10.00.50
Manufacturer:
Semtech Corporation
YTEOL:
5.95
Additional Feature:
LOW LEAKAGE CURRENT
Clamping Voltage-Max:
5.5 V
Configuration:
COMMON ANODE, 6 ELEMENTS
Diode Element Material:
SILICON
Diode Type:
TRANS VOLTAGE SUPPRESSOR DIODE
JESD-30 Code:
R-PDSO-N6
JESD-609 Code:
e4
Moisture Sensitivity Level:
1
Non-rep Peak Rev Power Dis-Max:
40 W
Number of Elements:
6
Number of Terminals:
6
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Package Body Material:
PLASTIC/EPOXY
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Peak Reflow Temperature (Cel):
260
Polarity:
UNIDIRECTIONAL
Qualification Status:
Not Qualified
Rep Pk Reverse Voltage-Max:
3.3 V
Surface Mount:
YES
Technology:
AVALANCHE
Terminal Finish:
NICKEL PALLADIUM GOLD
Terminal Form:
NO LEAD
Terminal Position:
DUAL
UCLAMP3306P.TCT Frequently Asked Questions (FAQs)
A good PCB layout for the UCLAMP3306P.TCT involves keeping the input and output traces as short as possible, using a solid ground plane, and minimizing the distance between the device and the protection components. A 4-layer PCB with a dedicated ground plane is recommended.
The choice of external components for the UCLAMP3306P.TCT depends on the specific application requirements. For example, the value of the external capacitor (C1) depends on the desired clamping voltage and the impedance of the protected line. A general guideline is to choose a capacitor with a value between 1nF to 10nF.
The UCLAMP3306P.TCT is rated for operation over a temperature range of -40°C to +125°C. However, the device's performance may degrade at extreme temperatures, and the user should consult the datasheet for specific temperature-related limitations.
Yes, the UCLAMP3306P.TCT is suitable for protecting high-speed data lines, such as USB, HDMI, and Ethernet. However, the user should ensure that the device is properly matched to the transmission line impedance and that the external components are chosen to minimize signal distortion.
To ensure proper soldering of the UCLAMP3306P.TCT, follow the recommended soldering profile, use a solder with a melting point below 260°C, and avoid applying excessive heat or force to the device. A reflow soldering process is recommended.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCLAMP3306P.TCT Overview

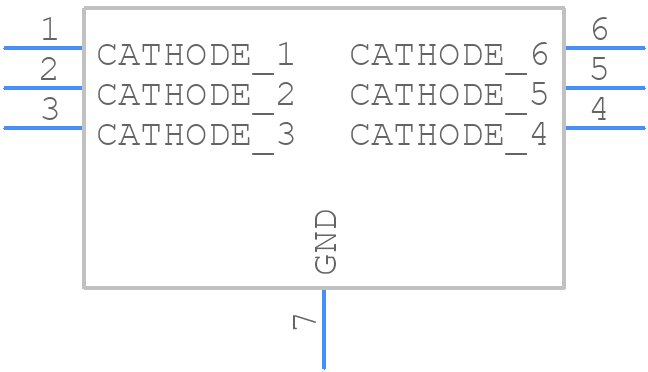

Use the download button to access the UCLAMP3306P.TCT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCLAM,
or try a keyword search, such as Transient Suppressors
