UDA1330ATS - Phillips

Description: UDA1330ATS

Download UDA1330ATS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

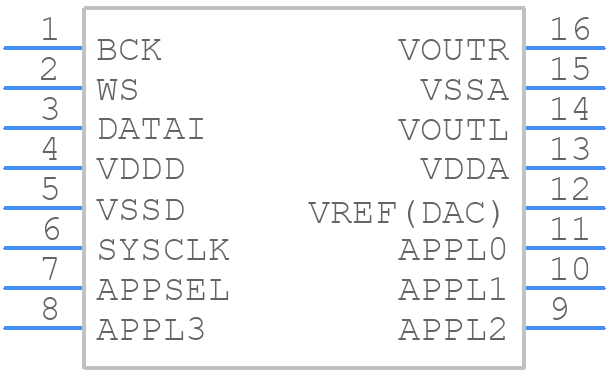

UDA1330ATS - Phillips - PCB symbol
click to zoom
PCB Footprints
UDA1330ATS - Phillips PCB footprint - Small Outline Packages - Small Outline Packages - UDA1330ATS
click to zoom
3D Models
UDA1330ATS - Phillips - 3D model - Small Outline Packages - UDA1330ATS
click to zoom

UDA1330ATS Details

  • Manufacturer Part Number:

    UDA1330ATS

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • HTS Code:

    8542.39.00.50

  • Manufacturer:

    Philips Semiconductors

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    2'S COMPLEMENT

  • JESD-30 Code:

    R-PDSO-G16

  • Number of Bits:

    20

  • Number of Functions:

    2

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

UDA1330ATS Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to first apply the analog power supply (VDDA) and then the digital power supply (VDDD). This ensures that the analog circuitry is powered up before the digital circuitry.
  • To optimize the UDA1330ATS for low power consumption, use the power-down mode (PD pin) to shut down the device when not in use. Additionally, use a low-frequency clock input and adjust the gain settings to minimize power consumption.
  • The maximum input signal amplitude that the UDA1330ATS can handle is 2.5Vrms. Exceeding this amplitude may result in distortion or damage to the device.
  • The UDA1330ATS can be configured for stereo or mono operation by setting the ST/MO pin. For stereo operation, connect the ST/MO pin to VDDA, and for mono operation, connect it to GND.
  • The recommended layout and routing for the UDA1330ATS involves separating the analog and digital signal paths, using a ground plane, and minimizing the length of the signal traces to reduce noise and interference.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

UDA1330ATS Overview

Use the download button to access the UDA1330ATS schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UDA13, or try a keyword search, such as Digital to Analog Converters
