UDA1334BTS/N2,112 - NXP

Description: UDA1334BTS/N2,112, Audio DAC Dual, 100ksps Serial, 16-Pin SSOP

Download UDA1334BTS/N2,112 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

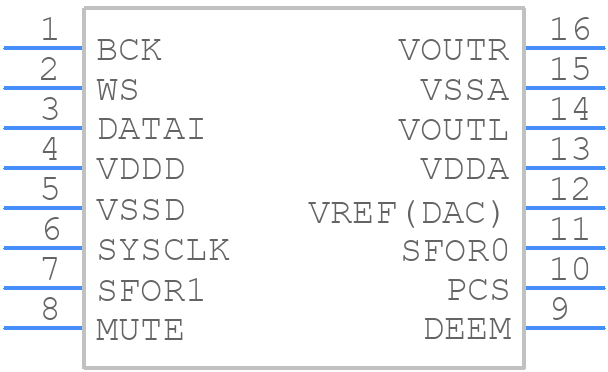

UDA1334BTS/N2,112 - NXP - PCB symbol
click to zoom
PCB Footprints
UDA1334BTS/N2,112 - NXP PCB footprint - Small Outline Packages - Small Outline Packages - SOT 369-1
click to zoom
3D Models
UDA1334BTS/N2,112 - NXP - 3D model - Small Outline Packages - SOT 369-1
click to zoom

UDA1334BTS/N2,112 Details

  • Manufacturer Part Number:

    UDA1334BTS/N2,112

  • Brand Name:

    NXP Semiconductor

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SSOP1

  • Package Description:

    4.40 MM, PLASTIC, MO-152, SOT369-1, SSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    SOT369-1

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    0

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    5.2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Equivalence Code:

    SSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.5 mm

  • Supply Voltage-Nom:

    2 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

UDA1334BTS/N2,112 Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to first apply the analog power supply (VDDA) and then the digital power supply (VDDD). This ensures that the analog circuitry is powered up before the digital circuitry.
  • To optimize for low power consumption, use the power-down modes (PDN and PDN2) to shut down unused blocks, reduce the clock frequency, and adjust the bias current. Additionally, use a low-power mode for the analog-to-digital converter (ADC) and digital-to-analog converter (DAC).
  • The maximum clock frequency supported by the UDA1334BTS/N2,112 is 50 MHz. However, the recommended clock frequency is 12.288 MHz for optimal performance.
  • To configure the UDA1334BTS/N2,112 for stereo audio applications, use the I2S interface and configure the device for stereo mode by setting the STEREO bit in the MODE register. Additionally, ensure that the left and right audio channels are properly routed to the corresponding pins.
  • The recommended layout and routing for the UDA1334BTS/N2,112 involves separating the analog and digital power supplies, using a star-ground configuration, and minimizing the length of the analog signal traces. Additionally, use a ground plane to reduce electromagnetic interference (EMI).

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

UDA1334BTS/N2,112 Overview

Use the download button to access the UDA1334BTS/N2,112 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UDA13, or try a keyword search, such as Digital to Analog Converters
