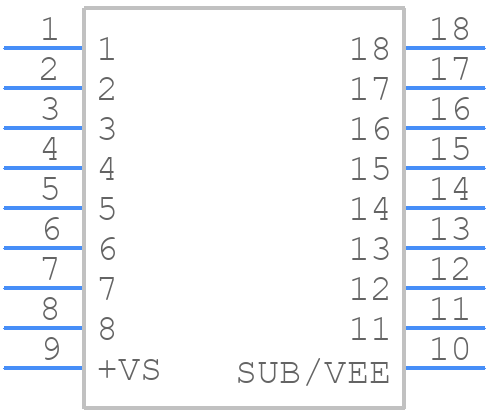

UDN2580A - Allegro Microsystems

UDN2580A Details

• Manufacturer Part Number:

  UDN2580A

• Part Life Cycle Code:

  Obsolete

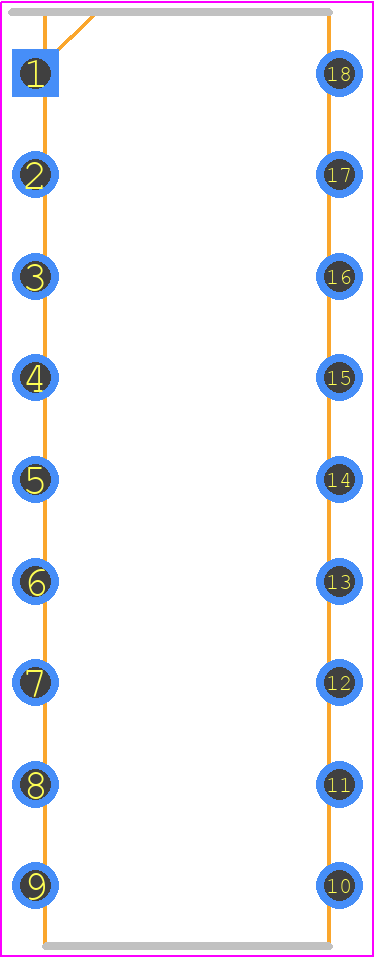

• Part Package Code:

  DIP

• Package Description:

  PLASTIC, DIP-18

• Pin Count:

  18

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Allegro MicroSystems LLC

• YTEOL:

  0

• Built-in Protections:

  TRANSIENT

• Driver Number of Bits:

  8

• Input Characteristics:

  STANDARD

• Interface IC Type:

  BUFFER OR INVERTER BASED PERIPHERAL DRIVER

• JESD-30 Code:

  R-PDIP-T18

• JESD-609 Code:

  e0

• Length:

  22.86 mm

• Number of Functions:

  8

• Number of Terminals:

  18

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -20 °C

• Output Characteristics:

  OPEN-EMITTER

• Output Current Flow Direction:

  SOURCE

• Output Current-Max:

  0.35 A

• Output Peak Current Limit-Nom:

  0.5 A

• Output Polarity:

  INVERTED

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DIP

• Package Equivalence Code:

  DIP18,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  5.33 mm

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  NO

• Technology:

  BIPOLAR

• Temperature Grade:

  OTHER

• Terminal Finish:

  TIN LEAD

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Turn-off Time:

  5 µs

• Turn-on Time:

  5 µs

• Width:

  7.62 mm
