UDN2595A - Allegro Microsystems

Description: 8-CHANNEL SATURATEDSINK DRIVER

Download UDN2595A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

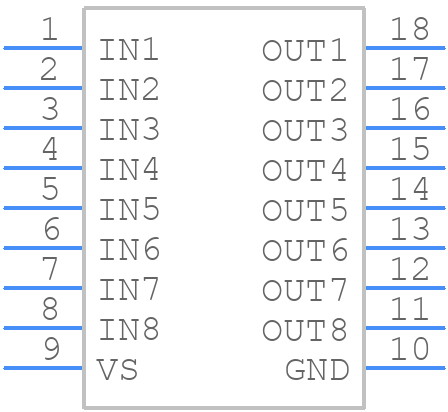

UDN2595A - Allegro Microsystems - PCB symbol
click to zoom
PCB Footprints

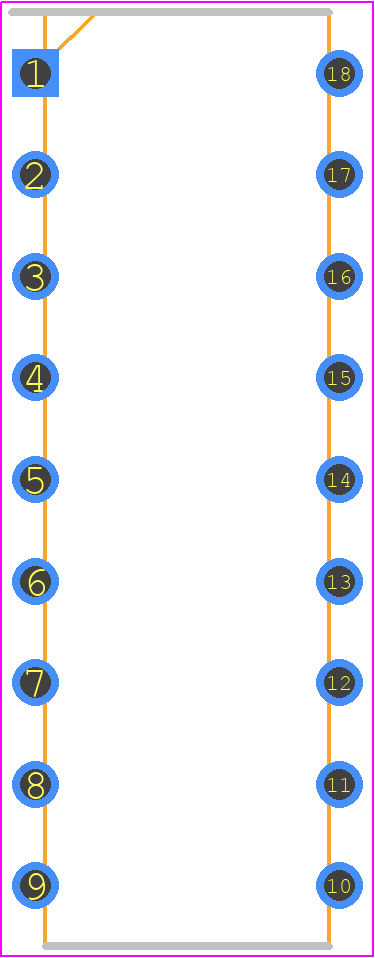

UDN2595A - Allegro Microsystems PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 18-Pin DIP
click to zoom
3D Models
UDN2595A - Allegro Microsystems - 3D model - Dual-In-Line Packages - 18-Pin DIP
click to zoom

UDN2595A Details

  • Manufacturer Part Number:

    UDN2595A

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DIP

  • Package Description:

    PLASTIC, DIP-18

  • Pin Count:

    18

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Allegro MicroSystems LLC

  • YTEOL:

    0

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDIP-T18

  • JESD-609 Code:

    e0

  • Length:

    22.86 mm

  • Number of Functions:

    8

  • Number of Terminals:

    18

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP18,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.33 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

UDN2595A Frequently Asked Questions (FAQs)

  • The maximum current rating of the UDN2595A is 5A per channel, with a maximum total current of 10A.
  • Proper thermal management can be achieved by providing adequate heat sinking, using a thermally conductive PCB material, and ensuring good airflow around the device.
  • A recommended PCB layout for the UDN2595A includes using a 4-layer board with a solid ground plane, placing decoupling capacitors close to the device, and using wide traces for power and ground connections.
  • The UDN2595A has built-in overvoltage protection, but additional protection can be achieved by using external voltage regulators and transient voltage suppressors.
  • The recommended input capacitor value for the UDN2595A is 10uF to 22uF, with a voltage rating of 25V or higher.
