UDN2982LW - Allegro Microsystems

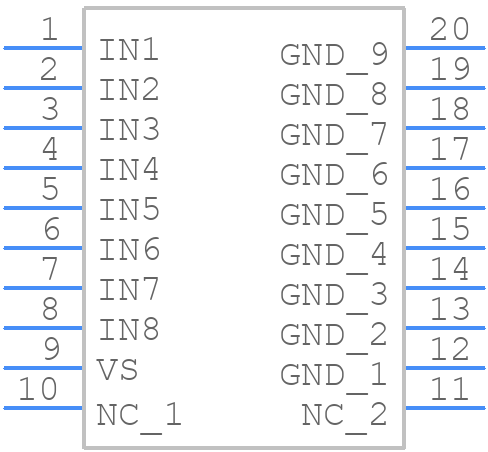

UDN2982LW Details

• Manufacturer Part Number:

  UDN2982LW

• Rohs Code:

  No

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  SOIC

• Package Description:

  SOP, SOP18,.4

• Pin Count:

  18

• Reach Compliance Code:

  Compliant

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Allegro MicroSystems LLC

• YTEOL:

  0

• Built-in Protections:

  TRANSIENT

• Driver Number of Bits:

  8

• Input Characteristics:

  STANDARD

• Interface IC Type:

  BUFFER OR INVERTER BASED PERIPHERAL DRIVER

• JESD-30 Code:

  R-PDSO-G18

• JESD-609 Code:

  e0

• Length:

  11.55 mm

• Number of Functions:

  8

• Number of Terminals:

  18

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -20 °C

• Output Characteristics:

  OPEN-EMITTER

• Output Current Flow Direction:

  SOURCE

• Output Current-Max:

  0.35 A

• Output Peak Current Limit-Nom:

  0.5 A

• Output Polarity:

  TRUE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Equivalence Code:

  SOP18,.4

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Peak Reflow Temperature (Cel):

  245

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  2.65 mm

• Supply Voltage-Max:

  50 V

• Supply Voltage-Min:

  5 V

• Supply Voltage-Nom:

  35 V

• Surface Mount:

  YES

• Technology:

  BIPOLAR

• Temperature Grade:

  COMMERCIAL EXTENDED

• Terminal Finish:

  Tin/Lead (Sn/Pb)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Turn-off Time:

  10 µs

• Turn-on Time:

  2 µs

• Width:

  7.5 mm
