UDQ2559LBTR-T - Allegro Microsystems

Description: IC POWER DRVR PROT QUAD 16SOIC

Download UDQ2559LBTR-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

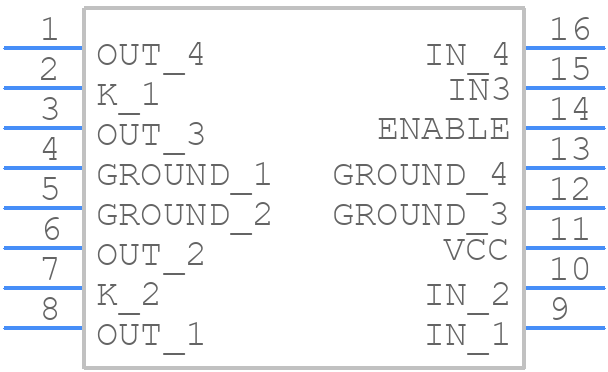

UDQ2559LBTR-T - Allegro Microsystems - PCB symbol
click to zoom
PCB Footprints
UDQ2559LBTR-T - Allegro Microsystems PCB footprint - Small Outline Packages - Small Outline Packages - LB Package, 16-pin SOICW-1
click to zoom
3D Models
UDQ2559LBTR-T - Allegro Microsystems - 3D model - Small Outline Packages - LB Package, 16-pin SOICW-1
click to zoom

UDQ2559LBTR-T Details

  • Manufacturer Part Number:

    UDQ2559LBTR-T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    LEAD FREE, MS-013AA, SOIC-16

  • Pin Count:

    16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Allegro MicroSystems LLC

  • YTEOL:

    0

  • Built-in Protections:

    TRANSIENT; OVER CURRENT; THERMAL

  • Driver Number of Bits:

    4

  • Interface IC Type:

    AND GATE BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current Flow Direction:

    SINK

  • Output Current-Max:

    0.4 A

  • Output Peak Current Limit-Nom:

    1 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Turn-on Time:

    20 µs

  • Width:

    7.5 mm

UDQ2559LBTR-T Frequently Asked Questions (FAQs)

  • A good PCB layout for the UDQ2559LBTR-T involves keeping the device as close to the motor as possible, using a solid ground plane, and minimizing the length of the motor leads. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • The sense resistor value depends on the motor current and the desired current sense accuracy. A good starting point is to choose a sense resistor value that results in a voltage drop of around 50-100 mV at the maximum motor current. The datasheet provides a formula to calculate the sense resistor value based on the motor current and desired accuracy.
  • The UDQ2559LBTR-T is rated for operation in an ambient temperature range of -40°C to 125°C. However, the device can be derated for operation at higher temperatures, and the maximum junction temperature is 150°C.
  • The UDQ2559LBTR-T has built-in overvoltage protection (OVP) and undervoltage protection (UVP) circuits. However, it's still recommended to add external protection components, such as a TVS diode or a voltage regulator, to protect the device from voltage transients and spikes.
  • A decoupling capacitor value of 10-22 μF is recommended for the UDQ2559LBTR-T. The capacitor should be placed as close to the device as possible and should have a low ESR to minimize voltage ripple.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

UDQ2559LBTR-T Overview

Use the download button to access the UDQ2559LBTR-T schematic symbol, PCB footprint, and 3D model.
