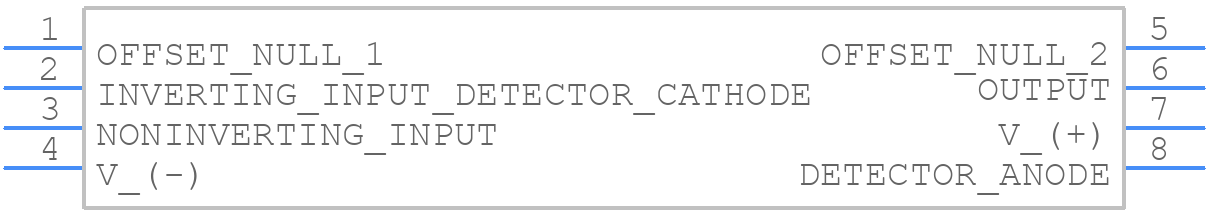

Symbol
PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for UDT-455
- Part Number UDT-455
- Manufacturer OSI Optoelectronics
- Pin Count 8
- Part Category Photodiode
- Package Category Other
- Footprint Name Other - UDT-455
- Released Date Apr 23, 2023
- Last Modified Date Apr 23, 2023 1:24 PM UTC
- Pinout / Pin List Click Here (Member Only)
UDT-455 Details
-
Manufacturer Part Number:
UDT-455
-
Rohs Code:
No
-
Part Life Cycle Code:
Contact Manufacturer
-
Reach Compliance Code:
Unknown
-
Manufacturer:
OSI Optoelectronics
-
Mounting Feature:
THROUGH HOLE MOUNT
-
Operating Temperature-Max:
70 °C
-
Supply Current-Max:
0.005 mA
-
Supply Voltage-Nom:
15 V
-
Surface Mount:
NO
UDT-455 Frequently Asked Questions (FAQs)
-
The recommended operating temperature range for UDT-455 is -40°C to 85°C, although it can be stored at temperatures between -50°C and 100°C.
-
Handle the UDT-455 by the ceramic body only, avoiding touching the optical surfaces or electrical contacts. Cleanliness and ESD precautions are also essential to prevent damage.
-
The typical rise time and fall time of the UDT-455 are 10 ns and 15 ns, respectively, although these values can vary depending on the specific application and operating conditions.
-
While the UDT-455 is designed to operate in a wide range of environments, it's not recommended for use in high-humidity environments (>80% RH) without proper hermetic sealing or protective coating to prevent moisture ingress.
-
The maximum allowable reverse voltage for the UDT-455 is 5V, exceeding which can cause permanent damage to the device.
