UJ2-ADH-3-TH - Same Sky

Description: Type A, USB 2.0, 480 Mbps, 30 Vac, 1 A, Right Angle, Through Hole Mounting Style, Through Hole Contact Pin Type, 15 µin Plating Thickness, Black Insulator, USB Receptacle

Download UJ2-ADH-3-TH Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
UJ2-ADH-3-TH - Same Sky - PCB symbol
click to zoom
PCB Footprints

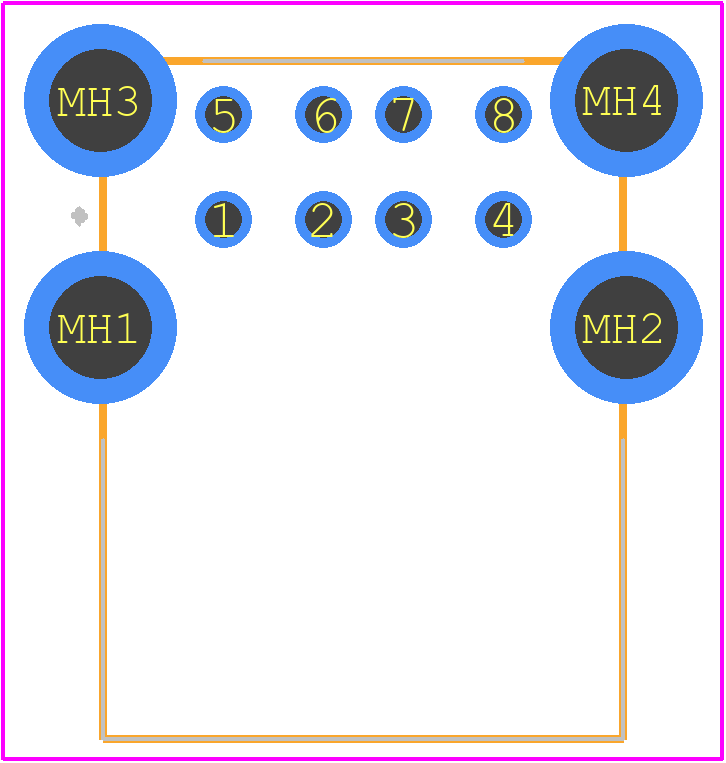

UJ2-ADH-3-TH - Same Sky PCB footprint - Other - Other - UJ2-ADH-3-TH-1
click to zoom
3D Models
UJ2-ADH-3-TH - Same Sky - 3D model - Other - UJ2-ADH-3-TH-1
click to zoom

UJ2-ADH-3-TH Details

  • Manufacturer Part Number:

    UJ2-ADH-3-TH

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Same Sky

  • YTEOL:

    6.77

  • Additional Feature:

    OTHER STACKING CONNECTOR: 4 CONTACTS

  • Board Mounting Option:

    SOLDERABLE RETENTION CLIPS

  • Body Breadth:

    0.61 inch

  • Body Depth:

    0.667 inch

  • Body Length:

    0.594 inch

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    USB CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Tin (Sn) - with Nickel (Ni) barrier

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    30 mΩ

  • Contact Style:

    USB2.0 A

  • DIN Conformance:

    NO

  • Dielectric Withstanding Voltage:

    500VAC V

  • Durability:

    1500 Cycles

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulation Resistance:

    1000000000 Ω

  • Insulator Color:

    BLACK

  • Insulator Material:

    POLYBUTYLENE TEREPHTHALATE

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Option 2:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Ports:

    2

  • Number of Rows Loaded:

    1+1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    2.62 mm

  • Plating Thickness:

    15u inch

  • Rated Current (Signal):

    1 A

  • Reference Standard:

    UL

  • Shell Finish:

    NICKEL

  • Shell Material:

    BRASS

  • Terminal Length:

    0.11 inch

  • Terminal Pitch:

    2 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    8

  • UL Flammability Code:

    94V-0

UJ2-ADH-3-TH Frequently Asked Questions (FAQs)

  • CUI Devices provides a recommended PCB layout and land pattern in their application notes or design guides, which can be found on their website or through direct contact with their technical support team.
  • To ensure reliable connections and prevent oxidation, it is recommended to use a flux or solder with a low melting point, and to follow proper soldering techniques. Additionally, applying a conformal coating or using a connector with a protective plating can help prevent oxidation.
  • While the datasheet specifies an operating temperature range, it's essential to note that the maximum operating temperature range may be affected by the specific application, environment, and usage. It's recommended to consult with CUI Devices' technical support team for specific guidance on temperature range limitations.
  • The UJ2-ADH-3-TH is designed to meet specific vibration and shock requirements, but it's crucial to evaluate the specific application and environment to ensure the connector can withstand the expected levels of vibration and shock. CUI Devices may provide additional guidance or testing data to support such applications.
  • Yes, the UJ2-ADH-3-TH may have specific EMI/EMC requirements or considerations, such as shielding or grounding, to ensure electromagnetic compatibility. It's recommended to consult the datasheet and application notes, as well as CUI Devices' technical support team, for guidance on EMI/EMC considerations.
