UJ32-C-R-G-SMT-P24-TR - Same Sky

Description: Type C, USB 3.2 Gen 1, 5 Gbps, 30 Vdc, 5 A, Right Angled, Surface Mount Anchor Pins Mounting Style, Surface Mount Contact Pin Type, Gold Plated 3 µin, 9.82 mm, 24 Pins, USB Receptacle

Download UJ32-C-R-G-SMT-P24-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

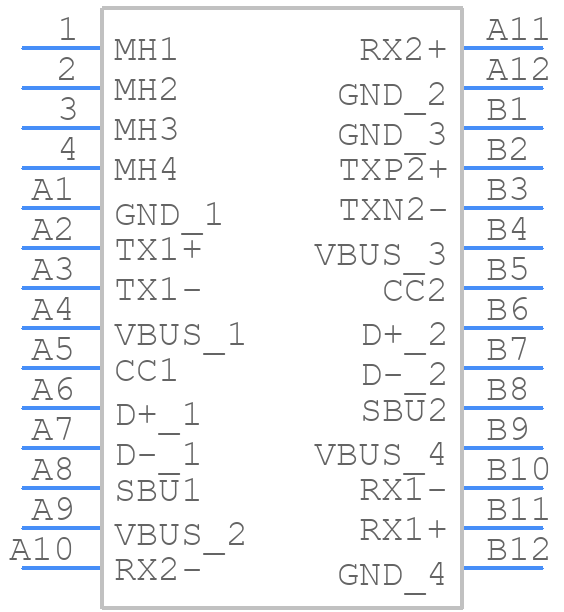

UJ32-C-R-G-SMT-P24-TR - Same Sky - PCB symbol
click to zoom
PCB Footprints

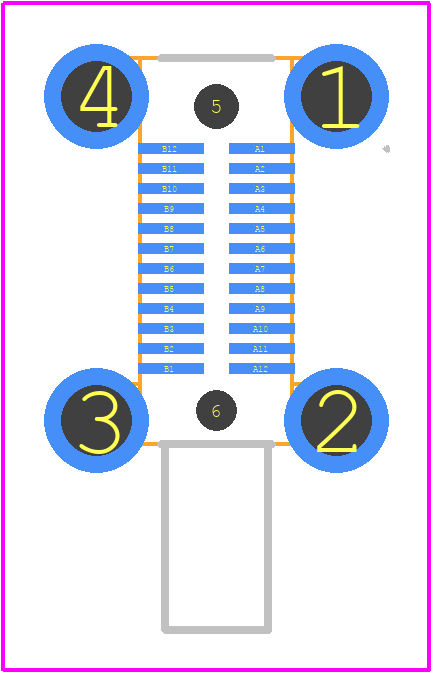

UJ32-C-R-G-SMT-P24-TR - Same Sky PCB footprint - Other - Other - UJ32-C-R-G-SMT-P24-TR-1
click to zoom
3D Models
UJ32-C-R-G-SMT-P24-TR - Same Sky - 3D model - Other - UJ32-C-R-G-SMT-P24-TR-1
click to zoom

UJ32-C-R-G-SMT-P24-TR Details

  • Manufacturer Part Number:

    UJ32-C-R-G-SMT-P24-TR

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Same Sky

  • Connector Type:

    USB CONNECTOR
