ULN2001A - STMicroelectronics

Description: STMicroelectronics ULN2001A, 7-element NPN Darlington Transistor Array, 500 mA 50 V HFE:1000, 16-Pin PDIP

Download ULN2001A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

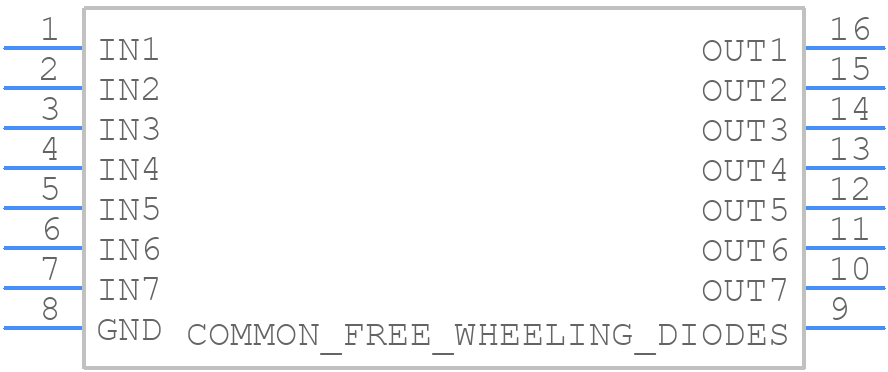

Symbol
ULN2001A - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
ULN2001A - STMicroelectronics PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - ULN2001A
click to zoom
3D Models
ULN2001A - STMicroelectronics - 3D model - Dual-In-Line Packages - ULN2001A
click to zoom

ULN2001A Details

  • Manufacturer Part Number:

    ULN2001A

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Package Description:

    MS-001AB, 16 PIN

  • Pin Count:

    16

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    6

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-609 Code:

    e3

  • Terminal Finish:

    Matte Tin (Sn)

ULN2001A Frequently Asked Questions (FAQs)

  • The ULN2001A can sink up to 500mA per output, but it's recommended to limit it to 350mA for reliable operation.
  • Yes, but be aware that the ULN2001A is not designed to handle the high voltage spikes generated by inductive loads. You may need to add external protection diodes or snubber circuits to prevent damage.
  • You can calculate the power dissipation using the formula: Pd = (Vcc x Icc) + Σ(Vout x Iout), where Vcc is the supply voltage, Icc is the quiescent current, Vout is the output voltage, and Iout is the output current.
  • The ULN2001A can operate with input voltages as low as 3.5V, but it's recommended to use a minimum of 4.5V to ensure reliable operation.
  • Yes, the ULN2001A can be used to drive LEDs, but be aware that the output voltage may not be sufficient to drive high-brightness LEDs. You may need to add external resistors to limit the current.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ULN2001A Overview

Use the download button to access the ULN2001A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ULN20, or try a keyword search, such as Peripheral Drivers

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
