ULN2001D1 - STMicroelectronics

Description: SMALL SIGNAL BIPOLAR TRANSISTOR, 0.5A I(C), 50V V(BR)CEO, 7-ELEMENT, NPN, SILICON

Download ULN2001D1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

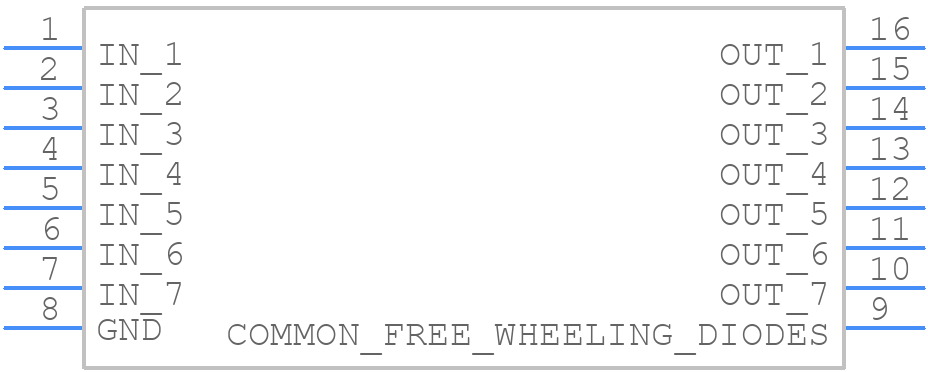

ULN2001D1 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
ULN2001D1 - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO-16N
click to zoom
3D Models
ULN2001D1 - STMicroelectronics - 3D model - Small Outline Packages - SO-16N
click to zoom

ULN2001D1 Details

  • Manufacturer Part Number:

    ULN2001D1

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SO-16

  • Pin Count:

    16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    5

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

ULN2001D1 Frequently Asked Questions (FAQs)

  • The ULN2001D1 can sink up to 500mA per output, but it's recommended to limit it to 350mA for reliable operation and to prevent overheating.
  • Yes, the ULN2001D1 is suitable for driving inductive loads, but you should add a freewheeling diode across the load to prevent back-EMF damage to the IC.
  • You can calculate the power dissipation using the formula: Pd = (Vcc x Icc) + Σ(Vout x Iout), where Vcc is the supply voltage, Icc is the quiescent current, Vout is the output voltage, and Iout is the output current.
  • The minimum input voltage required is 2.4V, but it's recommended to use a minimum of 3V to ensure reliable operation and to prevent latch-up.
  • Yes, the ULN2001D1 is compatible with 5V microcontrollers, but you should ensure that the input voltage to the ULN2001D1 does not exceed 5.5V to prevent damage.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ULN2001D1 Overview

Use the download button to access the ULN2001D1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ULN20, or try a keyword search, such as Peripheral Drivers
