ULN2001D1013TR - STMicroelectronics

Description: ULN2001D1013TR, Darlington Transistor Array, NPN 0.5A 50V, Array 7 HFE:1000, 16-Pin, SO

Download ULN2001D1013TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

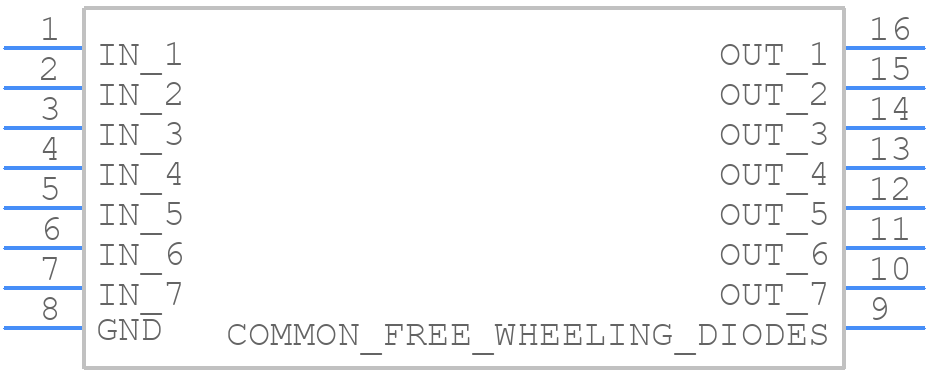

Symbol
ULN2001D1013TR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
ULN2001D1013TR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO16 Narrow
click to zoom
3D Models
ULN2001D1013TR - STMicroelectronics - 3D model - Small Outline Packages - SO16 Narrow
click to zoom

ULN2001D1013TR Details

  • Manufacturer Part Number:

    ULN2001D1013TR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    DIP-16

  • Pin Count:

    16

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    6

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-609 Code:

    e4

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Time@Peak Reflow Temperature-Max (s):

    30

ULN2001D1013TR Frequently Asked Questions (FAQs)

  • The ULN2001D1013TR can handle up to 500mA per output, but it's recommended to derate the current to 300mA for reliable operation.
  • To ensure proper biasing, connect a 1kΩ to 10kΩ resistor between the base and emitter of each Darlington transistor. This helps to prevent unwanted oscillations and ensures stable operation.
  • The recommended operating voltage range for the ULN2001D1013TR is 5V to 24V, with a maximum voltage of 32V. Operating outside this range may affect the device's reliability and performance.
  • To protect the ULN2001D1013TR from back-EMF, use a flyback diode (e.g., 1N4007) in parallel with the inductive load. This diode absorbs the back-EMF and prevents damage to the device.
  • The ULN2001D1013TR can switch at frequencies up to 100kHz, but it's recommended to limit the switching frequency to 10kHz to 20kHz for reliable operation and to minimize power losses.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ULN2001D1013TR Overview

Use the download button to access the ULN2001D1013TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ULN20, or try a keyword search, such as Peripheral Drivers

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
