ULN2003APG - Toshiba

Description: Toshiba ULN2003APG, 7-element NPN Darlington Transistor Array, 500 mA 50 V HFE:1000, 16-Pin PDIP

Download ULN2003APG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

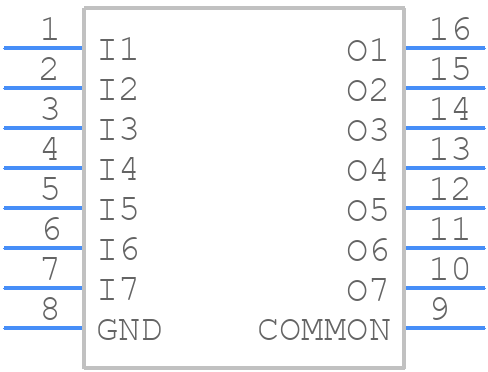

ULN2003APG - Toshiba - PCB symbol
click to zoom
PCB Footprints
ULN2003APG - Toshiba PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - DIP-16
click to zoom
3D Models
ULN2003APG - Toshiba - 3D model - Dual-In-Line Packages - DIP-16
click to zoom

ULN2003APG Details

  • Manufacturer Part Number:

    ULN2003APG

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DIP

  • Package Description:

    DIP-16

  • Pin Count:

    16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    0

  • Built-in Protections:

    TRANSIENT

  • Driver Number of Bits:

    7

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDIP-T16

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Output Characteristics:

    OPEN-COLLECTOR

  • Output Current Flow Direction:

    SINK

  • Output Polarity:

    INVERTED

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP16,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

ULN2003APG Frequently Asked Questions (FAQs)

  • The ULN2003APG can sink up to 500mA per output and source up to 100mA per output.
  • To ensure that the outputs are turned off when the input is high, connect a pull-down resistor between the input and ground. This will ensure that the input is actively driven low when the output is supposed to be off.
  • The maximum voltage that can be applied to the outputs is 50V. Exceeding this voltage may damage the device.
  • Yes, the ULN2003APG can be used as a relay driver. However, ensure that the relay coil current is within the output current rating of the device, and that the relay voltage is within the maximum voltage rating of the device.
  • To reduce power dissipation in the ULN2003APG, ensure that the output current is minimized, and the device is operated within the recommended temperature range. Additionally, consider using a heat sink or a PCB with good thermal conductivity to dissipate heat.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ULN2003APG Overview

Use the download button to access the ULN2003APG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ULN20, or try a keyword search, such as Peripheral Drivers
