- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for ULN2003TTR
- Part Number ULN2003TTR
- Manufacturer STMicroelectronics
- Pin Count 16
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - TSSOP16_2021
- Released Date Jul 19, 2021
- Last Modified Date Jan 8, 2026 2:31 PM UTC
- Pinout / Pin List Click Here (Member Only)
ULN2003TTR Details
-
Manufacturer Part Number:
ULN2003TTR
-
Brand Name:
STMicroelectronics
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
DIP-16
-
Country Of Origin:
Mainland China
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Factory Lead Time:
10 Weeks
-
Date Of Intro:
2020-09-13
-
Manufacturer:
STMicroelectronics
ULN2003TTR Frequently Asked Questions (FAQs)
-
The maximum current that each output of ULN2003TTR can handle is 500mA. However, it's recommended to derate the current to 350mA for reliable operation.
-
To protect the ULN2003TTR from back-EMF when driving inductive loads, you can add a freewheeling diode in parallel with the load. This diode allows the current to decay slowly, reducing the back-EMF voltage.
-
The minimum input voltage required for the ULN2003TTR to function properly is 2.4V. However, it's recommended to use a minimum of 3V to ensure reliable operation.
-
Yes, the ULN2003TTR can be used to drive a relay. However, you need to ensure that the relay's coil current is within the output current rating of the ULN2003TTR (500mA). You may also need to add a freewheeling diode to protect the ULN2003TTR from back-EMF.
-
To reduce the power consumption of the ULN2003TTR in standby mode, you can connect the input pins to a logic low level or use an enable input to disable the device. This can reduce the quiescent current to a few microamperes.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
ULN2003TTR Overview

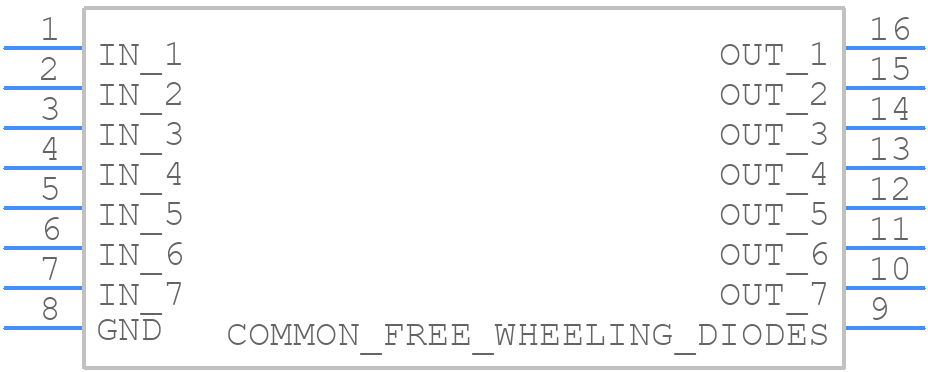

Use the download button to access the ULN2003TTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ULN20,
or try a keyword search, such as Peripheral Drivers
