ULN2004AFWG - Toshiba

Description: Toshiba ULN2004AFWG, 7-element NPN Darlington Transistor Array, 500 mA 50 V HFE:1000, 16-Pin SOL

Download ULN2004AFWG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

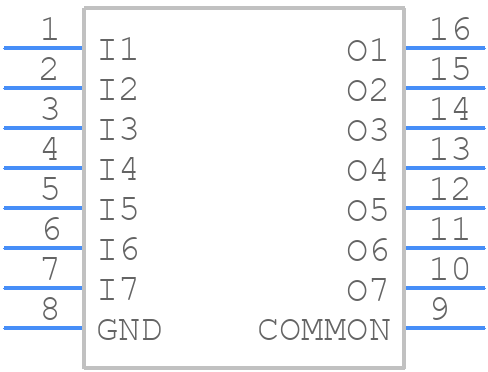

ULN2004AFWG - Toshiba - PCB symbol
click to zoom
PCB Footprints
ULN2004AFWG - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - SOL16-P-150-1.27A
click to zoom
3D Models
ULN2004AFWG - Toshiba - 3D model - Small Outline Packages - SOL16-P-150-1.27A
click to zoom

ULN2004AFWG Details

  • Manufacturer Part Number:

    ULN2004AFWG

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    LEAD FREE, PLASTIC, SOL-16

  • Pin Count:

    16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    0

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

ULN2004AFWG Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the ULN2004AFWG is -20°C to 85°C.
  • Yes, the ULN2004AFWG can be used as a relay driver due to its high current capability and low output impedance.
  • To protect the ULN2004AFWG from back-EMF when driving inductive loads, use a flyback diode (such as 1N4007) in parallel with the load to absorb the back-EMF voltage.
  • The minimum input voltage required for the ULN2004AFWG to operate is 2.4V, but it's recommended to use a minimum of 3V for reliable operation.
  • Yes, the ULN2004AFWG can be used to drive LEDs, but make sure to limit the current to the recommended maximum of 500mA per output.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ULN2004AFWG Overview

Use the download button to access the ULN2004AFWG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ULN20, or try a keyword search, such as Peripheral Drivers
