The ULN2004AS16-13 can sink up to 500mA per output, making it suitable for driving relays, solenoids, and other inductive loads.
To protect the outputs from back-EMF, it is recommended to add a freewheeling diode (such as 1N4001-1N4007) in parallel with the inductive load, with the anode connected to the output pin and the cathode connected to the positive supply rail.
The ULN2004AS16-13 requires a minimum input voltage of 2.7V to function properly, although it can operate down to 2.3V with reduced performance.
While the ULN2004AS16-13 can be used to drive LEDs, it is not the most suitable choice due to its relatively high output voltage drop (around 1.5V). A dedicated LED driver or a transistor array with a lower voltage drop would be a better option.
To calculate the power dissipation of the ULN2004AS16-13, you need to consider the output current, output voltage, and the internal resistance of the device. A rough estimate can be made using the formula: Pd = (Vcc x Iout) / (Rout x N), where Pd is the power dissipation, Vcc is the supply voltage, Iout is the output current, Rout is the internal resistance, and N is the number of outputs.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ULN2004AS16-13 Overview

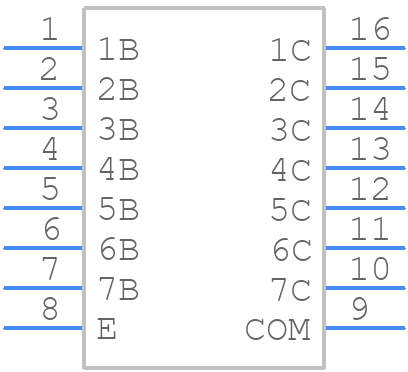

Use the download button to access the ULN2004AS16-13 schematic symbol, PCB footprint, and 3D model.
