ULN2803A - STMicroelectronics

Description: Trans Darlington NPN 50V 0.5A PDIP18 STMicroelectronics ULN2803A Octal NPN Darlington Transistor Array, 0.5 A 50 V HFE:1000, 18-Pin PDIP

Download ULN2803A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

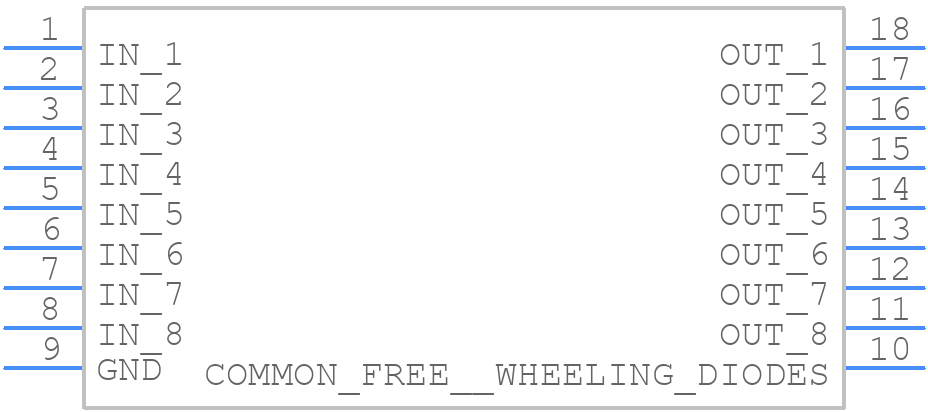

ULN2803A - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

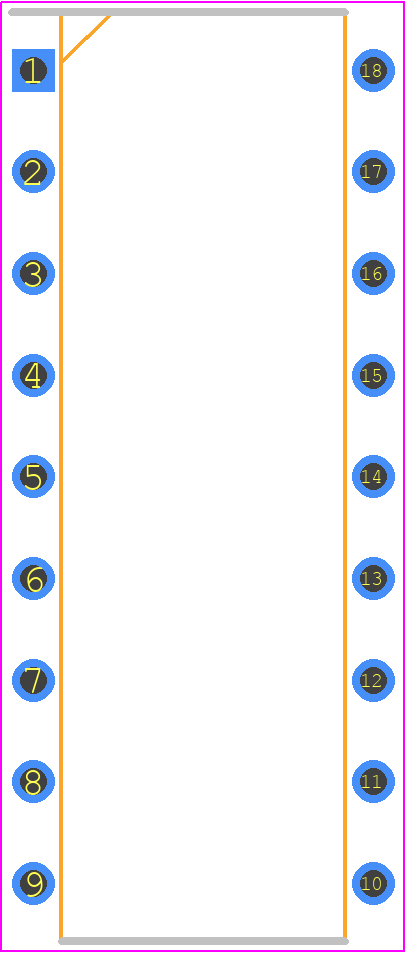

ULN2803A - STMicroelectronics PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - DIP-18
click to zoom
3D Models
ULN2803A - STMicroelectronics - 3D model - Dual-In-Line Packages - DIP-18
click to zoom

ULN2803A Details

  • Manufacturer Part Number:

    ULN2803A

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Package Description:

    DIP-18

  • Pin Count:

    18

  • Country Of Origin:

    Mainland China, Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    5.61

  • Built-in Protections:

    TRANSIENT

  • Driver Number of Bits:

    8

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDIP-T18

  • Length:

    23.24 mm

  • Number of Functions:

    8

  • Number of Terminals:

    18

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Output Current Flow Direction:

    SINK

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP18,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Seated Height-Max:

    3.93 mm

  • Supply Current-Max:

    1.35 mA

  • Surface Mount:

    NO

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    1 µs

  • Turn-on Time:

    1 µs

  • Width:

    7.62 mm

ULN2803A Frequently Asked Questions (FAQs)

  • The maximum current that each output can handle is 500mA. However, it's recommended to derate the current to 350mA for reliable operation.
  • You can add a flyback diode (e.g., 1N4007) in parallel with the inductive load to protect the ULN2803A from back-EMF. The diode should be connected in the reverse direction of the load current.
  • The minimum input voltage required is 4.5V, but it's recommended to use a minimum of 5V for reliable operation.
  • Yes, the ULN2803A can be used to drive a relay. However, ensure that the relay's coil current is within the output current rating of the ULN2803A (500mA per channel). Also, add a flyback diode to protect the ULN2803A from back-EMF.
  • You can reduce the power consumption of the ULN2803A in standby mode by applying a logic low signal to the input pins. This will put the device in a low-power state, reducing the quiescent current.
