ULN2803AFWG(5,M) - Toshiba

Description: Darlington Transistors 8CH. 50V/.5A IFD IC

Download ULN2803AFWG(5,M) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

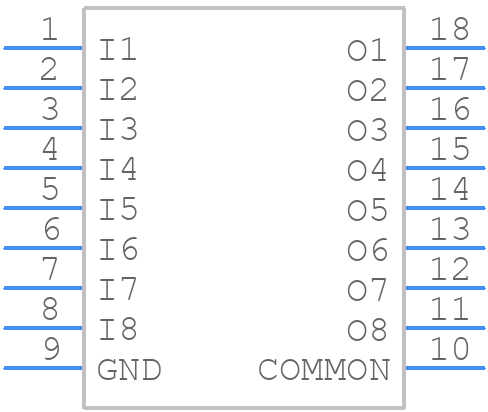

ULN2803AFWG(5,M) - Toshiba - PCB symbol
click to zoom
PCB Footprints

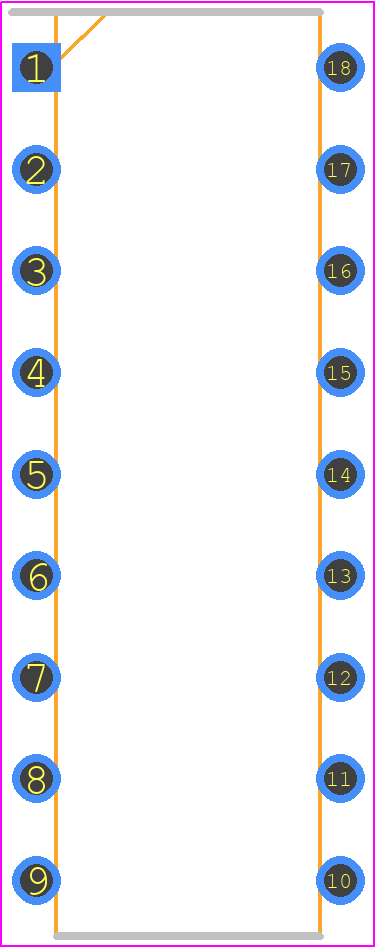

ULN2803AFWG(5,M) - Toshiba PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - DIP18-P-300-2.54F
click to zoom
3D Models
ULN2803AFWG(5,M) - Toshiba - 3D model - Dual-In-Line Packages - DIP18-P-300-2.54F
click to zoom

ULN2803AFWG(5,M) Details

  • Manufacturer Part Number:

    ULN2803AFWG(5,M)

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    0.300 INCH, 1.27 MM PITCH, PLASTIC, SOL-18

  • Pin Count:

    18

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    0

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G18

  • Length:

    11.55 mm

  • Number of Functions:

    1

  • Number of Terminals:

    18

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max:

    30 V

  • Supply Voltage-Min:

    2.5 V

  • Supply Voltage-Nom:

    3.85 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    7.5 mm

ULN2803AFWG(5,M) Frequently Asked Questions (FAQs)

  • The maximum current that each output can handle is 500mA, according to the datasheet. However, it's recommended to derate the current to 300-400mA for reliable operation.
  • To ensure that the outputs are properly protected from back-EMF, it's recommended to add a freewheeling diode (also known as a flyback diode) in parallel with the load. This diode should be rated for the maximum voltage and current of the load.
  • The recommended operating voltage range for the ULN2803AFWG is 5V to 30V. However, the device can tolerate up to 50V for short periods of time.
  • To calculate the power dissipation of the ULN2803AFWG, you need to consider the voltage drop across the internal resistors and the current flowing through them. A rough estimate can be made using the formula: Pd = (Vin - Vout) x Iout x Rint, where Vin is the input voltage, Vout is the output voltage, Iout is the output current, and Rint is the internal resistance.
  • Yes, the ULN2803AFWG can be used as a relay driver. However, you need to ensure that the relay coil current is within the maximum current rating of the ULN2803AFWG (500mA per output). Additionally, you may need to add a base resistor to limit the current to the relay coil.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ULN2803AFWG(5,M) Overview

Use the download button to access the ULN2803AFWG(5,M) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ULN28, or try a keyword search, such as Peripheral Drivers
