ULN2803APG - Toshiba

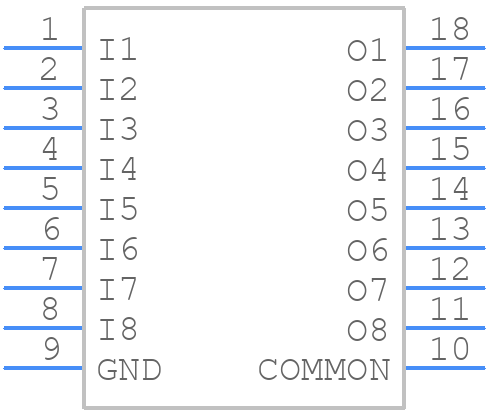

ULN2803APG Details

• Manufacturer Part Number:

  ULN2803APG

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  DIP

• Package Description:

  DIP-18

• Pin Count:

  18

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Toshiba America Electronic Components

• YTEOL:

  0

• Built-in Protections:

  TRANSIENT

• Driver Number of Bits:

  8

• Interface IC Type:

  BUFFER OR INVERTER BASED PERIPHERAL DRIVER

• JESD-30 Code:

  R-PDIP-T18

• Length:

  22.86 mm

• Number of Functions:

  8

• Number of Terminals:

  18

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Characteristics:

  OPEN-COLLECTOR

• Output Current Flow Direction:

  SINK

• Output Current-Max:

  0.347 A

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DIP

• Package Equivalence Code:

  DIP18,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Seated Height-Max:

  4.8 mm

• Supply Current-Max:

  1.35 mA

• Supply Voltage-Max:

  30 V

• Supply Voltage-Nom:

  3.85 V

• Surface Mount:

  NO

• Technology:

  BIPOLAR

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Width:

  7.62 mm
