ULN2803LW - Allegro Microsystems

Description: HIGH-VOLTAGE, HIGH-CURRENT DARLINGTON ARRAYS

Download ULN2803LW Model

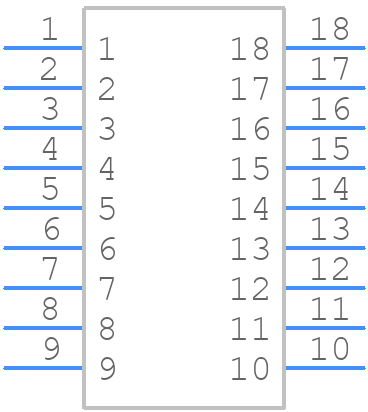

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ULN2803LW - Allegro Microsystems PCB footprint - Small Outline Packages - Small Outline Packages - ULN2803LW
click to zoom
3D Models
ULN2803LW - Allegro Microsystems  - 3D model - Small Outline Packages - ULN2803LW
click to zoom

ULN2803LW Details

  • Manufacturer Part Number:

    ULN2803LW

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-18

  • Pin Count:

    18

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Allegro MicroSystems LLC

  • YTEOL:

    0

  • Built-in Protections:

    TRANSIENT

  • Driver Number of Bits:

    8

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G18

  • Length:

    11.55 mm

  • Number of Functions:

    1

  • Number of Terminals:

    18

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Output Characteristics:

    OPEN-COLLECTOR

  • Output Current Flow Direction:

    SINK

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP18,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Seated Height-Max:

    2.65 mm

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    1 µs

  • Turn-on Time:

    1 µs

  • Width:

    7.5 mm

ULN2803LW Frequently Asked Questions (FAQs)

  • The maximum current that can be sunk by each output of the ULN2803LW is 500 mA.
  • To protect the ULN2803LW from back-EMF when driving inductive loads, a freewheeling diode should be connected in parallel with the inductive load.
  • The minimum input voltage required to guarantee proper operation of the ULN2803LW is 3.5 V.
  • Yes, the ULN2803LW can be used to drive a relay, but the relay's coil current and voltage must be within the ULN2803LW's specifications.
  • The power dissipation of the ULN2803LW can be calculated using the formula: Pd = Σ(Io x Vo) + (Vin x Iin), where Io is the output current, Vo is the output voltage, Vin is the input voltage, and Iin is the input current.
