ULN2804AFWG - Toshiba

Description: TOSHIBA - ULN2804AFWG - DARLINGTON ARRAY 8NPN, SMD, 2804

Download ULN2804AFWG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

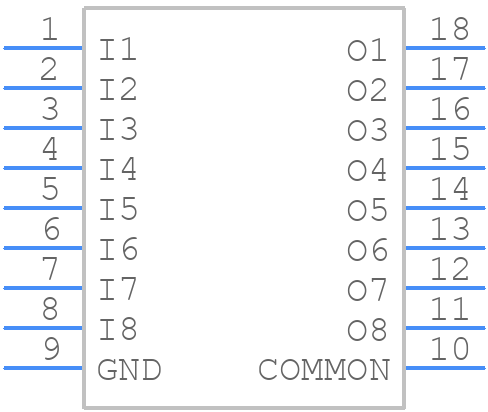

Symbol
ULN2804AFWG - Toshiba - PCB symbol
click to zoom
PCB Footprints
ULN2804AFWG - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - ULN2804AFWG
click to zoom
3D Models
ULN2804AFWG - Toshiba - 3D model - Small Outline Packages - ULN2804AFWG
click to zoom

ULN2804AFWG Details

  • Manufacturer Part Number:

    ULN2804AFWG

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    0.300 INCH, LEAD FREE, PLASTIC, SOL-18

  • Pin Count:

    18

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    0

ULN2804AFWG Frequently Asked Questions (FAQs)

  • The ULN2804AFWG can sink up to 500mA per output, but it's recommended to derate the current to 350mA per output for reliable operation.
  • To ensure that the outputs are turned off when the input is high, make sure to use a pull-down resistor on the input pin to prevent it from floating. A 1kΩ to 10kΩ resistor is recommended.
  • No, the ULN2804AFWG is designed as a low-side switch, meaning it can only sink current. It's not suitable for high-side switching applications.
  • The maximum voltage that can be applied to the output pins is 50V. Exceeding this voltage may damage the device.
  • To protect the ULN2804AFWG from back-EMF when driving inductive loads, use a flyback diode (such as 1N4007) in parallel with the load. This will absorb the back-EMF and prevent damage to the device.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ULN2804AFWG Overview

Use the download button to access the ULN2804AFWG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ULN28, or try a keyword search, such as Peripheral Drivers
