Part Image

ULP-70+ - Mini-Circuits

Description: 77MHz (Cutoff) Frequency Low Pass RF Filter (Radio Frequency) 70MHz Bandwidth 2dB 6-SMD Module

Download ULP-70+ Model

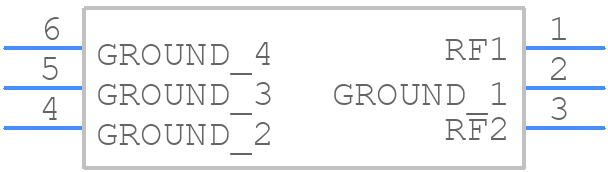

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ULP-70+ - Mini-Circuits PCB footprint - Other - Other - ULP-70+-1
click to zoom
3D Models
ULP-70+ - Mini-Circuits  - 3D model - Other - ULP-70+-1
click to zoom

ULP-70+ Details

  • Manufacturer Part Number:

    ULP-70+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7

  • Additional Feature:

    TR, 7 INCH:200; OTHER REEL QTYS ALSO AVAILABLE

  • Average Input Power:

    0.1 W

  • Center or Cutoff Frequency (fo/fc):

    77 MHz

  • Filter Type:

    LOW PASS FILTER

  • Height:

    2.54 mm

  • Input Impedance:

    50 OHM

  • Insertion Loss-Max:

    2 dB

  • Length:

    6.35 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Sections-Max:

    1

  • Number of Sections-Min:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Impedance:

    50 OHM Ω

  • Packing Method:

    TR, 13 INCH

  • VSWR:

    1.1

  • Width:

    6.35 mm

ULP-70+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
  • To achieve the best possible noise figure, ensure that the input is properly matched, and the device is operated within its recommended operating conditions. Additionally, using a high-quality, low-noise power supply and minimizing the noise floor of the surrounding circuitry can help.
  • The ULP-70+ is designed to handle input powers up to +10 dBm. Exceeding this limit can result in compression, distortion, or even damage to the device. It's essential to ensure that the input power is within the recommended range.
  • While the ULP-70+ is designed for 50 ohm systems, it can be used in non-50 ohm systems with proper impedance matching. However, this may require additional circuitry and can affect the device's performance. Consult with a qualified RF engineer or Mini-Circuits' application support for guidance.
  • The ULP-70+ is specified to operate from -40°C to +85°C. Operating the device outside this range can affect its performance, reliability, and lifespan.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ULP-70+ Overview

Use the download button to access the ULP-70+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ULP-7, or try a keyword search, such as General Purpose Passive Filters

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
