Part Image

ULP12OAP1RSSCL1RGB - E-Switch

Description: PUSHBUTTON, 100mA, 28VDC SPDT, On-(On) Through Hole

Download ULP12OAP1RSSCL1RGB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

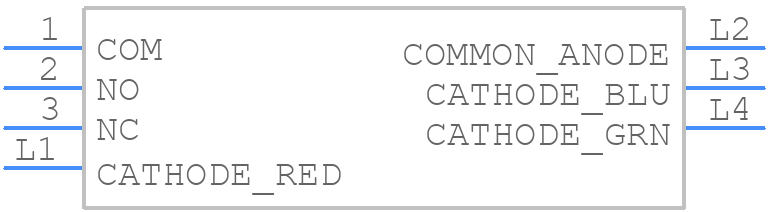

ULP12OAP1RSSCL1RGB - E-Switch - PCB symbol
click to zoom
PCB Footprints
ULP12OAP1RSSCL1RGB - E-Switch PCB footprint - Other - Other - ULP12OAP1RSSCL1RGB-4
click to zoom
3D Models
ULP12OAP1RSSCL1RGB - E-Switch - 3D model - Other - ULP12OAP1RSSCL1RGB-4
click to zoom

ULP12OAP1RSSCL1RGB Details

  • Manufacturer Part Number:

    ULP12OAP1RSSCL1RGB

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.70.00

  • Manufacturer:

    E-Switch Inc

  • Switch Type:

    PUSHBUTTON SWITCH

ULP12OAP1RSSCL1RGB Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the ULP12OAP1RSSCL1RGB is -20°C to 70°C.
  • Yes, the ULP12OAP1RSSCL1RGB is designed for high-reliability applications, with a lifespan of up to 1 million cycles.
  • The ULP12OAP1RSSCL1RGB has a rating of IP67, which means it is protected against dust and can withstand immersion in water up to 1 meter for 30 minutes.
  • The maximum current rating for the LED indicators is 20mA per LED.
  • Yes, E-Switch Inc offers customization options for LED colors and additional LEDs. Contact their sales team for more information.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ULP12OAP1RSSCL1RGB Overview

Use the download button to access the ULP12OAP1RSSCL1RGB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ULP12, or try a keyword search, such as Pushbutton Switches
