ULQ2003D1013TR - STMicroelectronics

Description: ULQ2003D1013TR, Darlington Transistor Array, NPN 0.5 A 50 V, Array 7, 16-Pin, SO

Download ULQ2003D1013TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

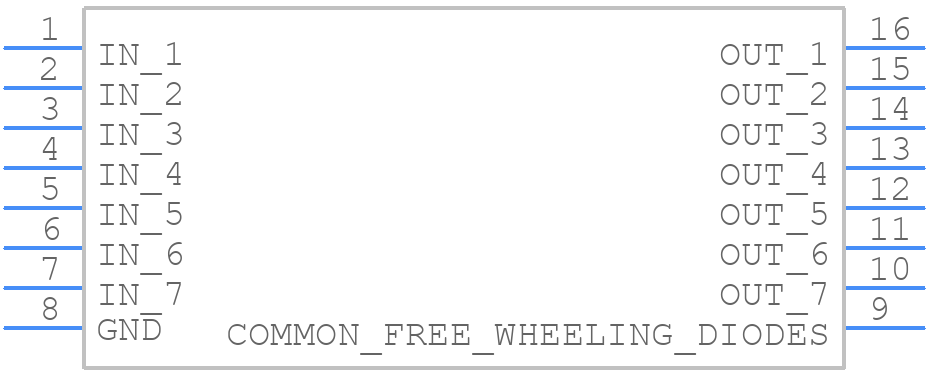

ULQ2003D1013TR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
ULQ2003D1013TR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO-16N
click to zoom
3D Models
ULQ2003D1013TR - STMicroelectronics - 3D model - Small Outline Packages - SO-16N
click to zoom

ULQ2003D1013TR Details

  • Manufacturer Part Number:

    ULQ2003D1013TR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-16

  • Pin Count:

    16

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    6.98

  • Built-in Protections:

    TRANSIENT

  • Driver Number of Bits:

    7

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    OPEN-COLLECTOR

  • Output Current Flow Direction:

    SINK

  • Output Peak Current Limit-Nom:

    0.5 A

  • Output Polarity:

    INVERTED

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Nom:

    50 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

ULQ2003D1013TR Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, and ensuring good thermal conductivity between the device and the PCB. A 2-layer or 4-layer PCB with a solid ground plane is recommended.
  • To ensure reliable operation at high temperatures, ensure that the device is operated within the recommended temperature range, and that the PCB is designed to dissipate heat efficiently. Also, consider using a heat sink or thermal pad to reduce the junction temperature.
  • To prevent ESD damage, handle the device in an ESD-protected environment, use ESD-protective packaging, and ensure that all equipment and personnel are grounded. Avoid touching the device pins or leads, and use an anti-static wrist strap or mat when handling the device.
  • To troubleshoot issues with the device, start by reviewing the datasheet and application notes to ensure correct usage. Check the device's operating conditions, power supply, and signal integrity. Use oscilloscopes or logic analyzers to debug the issue, and consider consulting with STMicroelectronics' technical support or a qualified engineer.
  • When using the device in a high-reliability or safety-critical application, ensure that the device is operated within its recommended specifications, and that the system is designed with redundancy and fail-safes. Consider using redundant devices, error detection and correction mechanisms, and implementing safety protocols to mitigate potential failures.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ULQ2003D1013TR Overview

Use the download button to access the ULQ2003D1013TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ULQ20, or try a keyword search, such as Peripheral Drivers
