ULQ2003D1013TRY - STMicroelectronics

Description: Darlington Transistors POWER MANAGEMENT

Download ULQ2003D1013TRY Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

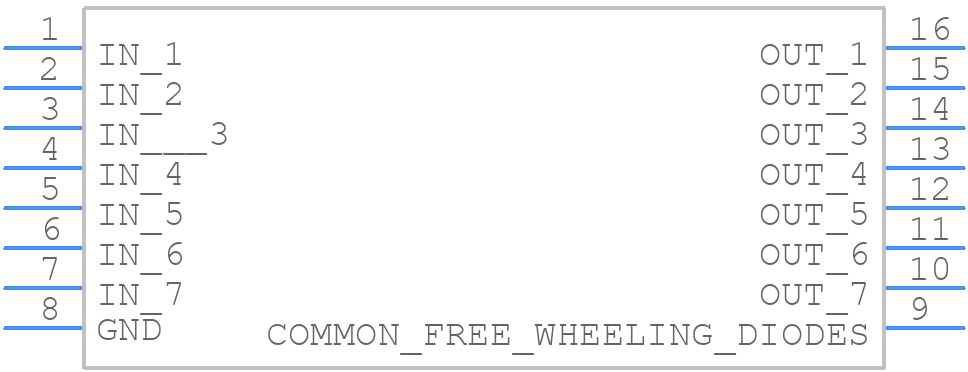

ULQ2003D1013TRY - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
ULQ2003D1013TRY - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO-16 Narrow_
click to zoom
3D Models
ULQ2003D1013TRY - STMicroelectronics - 3D model - Small Outline Packages - SO-16 Narrow_
click to zoom

ULQ2003D1013TRY Details

  • Manufacturer Part Number:

    ULQ2003D1013TRY

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-16

  • Country Of Origin:

    Morocco

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    6.98

  • Built-in Protections:

    TRANSIENT

  • Driver Number of Bits:

    7

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    OPEN-COLLECTOR

  • Output Current Flow Direction:

    SINK

  • Output Peak Current Limit-Nom:

    0.5 A

  • Output Polarity:

    INVERTED

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Nom:

    50 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

ULQ2003D1013TRY Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, and ensuring good thermal conductivity between the device and the PCB. A 2-layer or 4-layer PCB with a solid ground plane is recommended. Avoid placing thermal vias under the device, and keep the PCB traces away from the device's thermal pad.
  • To ensure reliable operation in high-temperature environments, ensure that the device is operated within its recommended temperature range (–40°C to 150°C). Use a heat sink or thermal pad to dissipate heat, and avoid overheating the device. Also, consider using a thermally conductive adhesive or thermal interface material to improve heat transfer.
  • The recommended soldering conditions for the ULQ2003D1013TRY are: peak temperature of 260°C, soldering time of 10-30 seconds, and a soldering iron temperature of 350°C. Use a solder with a melting point of 217°C to 220°C. Avoid using excessive soldering temperatures or times, as this can damage the device.
  • To handle ESD protection for the ULQ2003D1013TRY, use an ESD wrist strap or mat when handling the device. Ensure that the device is stored in an ESD-protected environment, and use ESD-protected packaging materials. Avoid touching the device's pins or leads, and use an ESD-protected workstation or bench.
  • The recommended storage conditions for the ULQ2003D1013TRY are: temperature range of –40°C to 30°C, relative humidity of 60% or less, and protection from direct sunlight. Store the device in its original packaging or an ESD-protected container, and avoid exposing it to moisture or contaminants.
