ULQ2801A - STMicroelectronics

Description: Darlington Octal NPN 50V 0.5A PDIP18

Download ULQ2801A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

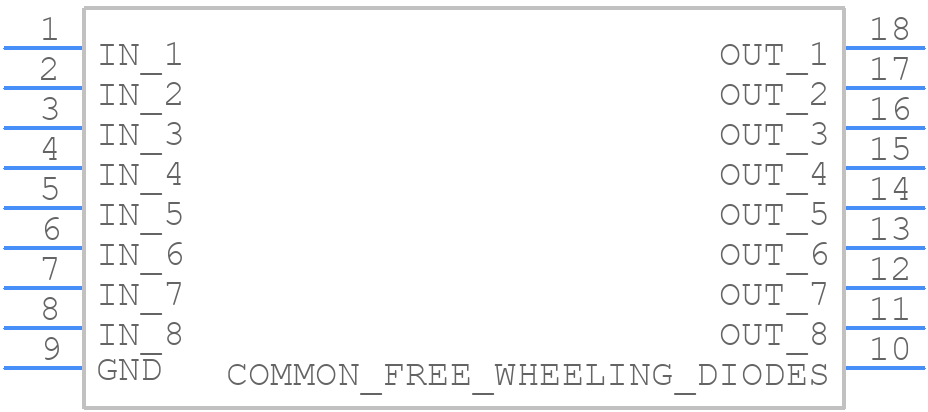

ULQ2801A - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

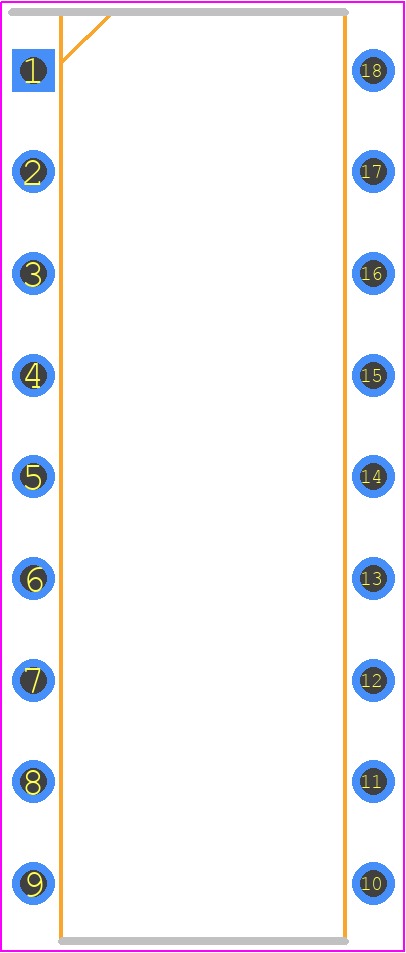

ULQ2801A - STMicroelectronics PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - DIP-18
click to zoom
3D Models
ULQ2801A - STMicroelectronics - 3D model - Dual-In-Line Packages - DIP-18
click to zoom

ULQ2801A Details

  • Manufacturer Part Number:

    ULQ2801A

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Package Description:

    DIP-18

  • Pin Count:

    18

  • Country Of Origin:

    Mainland China, Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    6

  • Additional Feature:

    LENGTH IS MAX VALUE

  • Built-in Protections:

    TRANSIENT

  • Driver Number of Bits:

    8

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDIP-T18

  • Length:

    23.24 mm

  • Number of Functions:

    1

  • Number of Terminals:

    18

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    OPEN-COLLECTOR

  • Output Current Flow Direction:

    SINK

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP18,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Seated Height-Max:

    3.93 mm

  • Surface Mount:

    NO

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    1 µs

  • Turn-on Time:

    1 µs

  • Width:

    7.62 mm

ULQ2801A Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN2552, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The ULQ2801A has a thermal pad that must be connected to a thermal ground plane on the PCB to dissipate heat. A thermal interface material (TIM) can be used to improve thermal conductivity. Additionally, the device should be placed in a well-ventilated area, and heat sinks or fans can be used to further reduce temperatures.
  • While the datasheet specifies a recommended operating voltage range of 4.5V to 5.5V, the absolute maximum rating for the VCC pin is 6V. Exceeding this voltage can cause permanent damage to the device.
  • The ULQ2801A is rated for operation up to 125°C, but its performance may degrade at higher temperatures. If operation above 125°C is required, derating of the device's electrical characteristics may be necessary. Consult STMicroelectronics for guidance on high-temperature operation.
  • STMicroelectronics provides a troubleshooting guide in the application note AN2552, which covers common issues such as output voltage errors, oscillations, and thermal shutdown. Additionally, engineers can use oscilloscopes and logic analyzers to debug the device's behavior and identify potential problems.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ULQ2801A Overview

Use the download button to access the ULQ2801A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ULQ28, or try a keyword search, such as Peripheral Drivers
