UMZ18NT106 - ROHM Semiconductor

Description: Zener arrays for terminal protection devices

Download UMZ18NT106 Model

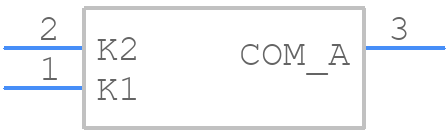

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
UMZ18NT106 - ROHM Semiconductor PCB footprint - Other - Other - UMZ18NT106-2
click to zoom
3D Models
UMZ18NT106 - ROHM Semiconductor  - 3D model - Other - UMZ18NT106-2
click to zoom

UMZ18NT106 Details

  • Manufacturer Part Number:

    UMZ18NT106

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.50

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    7

  • Diode Type:

    ZENER DIODE

  • JESD-609 Code:

    e1

  • Moisture Sensitivity Level:

    1

  • Operating Temperature-Max:

    150 °C

  • Peak Reflow Temperature (Cel):

    260

  • Power Dissipation-Max:

    0.2 W

  • Reference Voltage-Nom:

    18 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Silver/Copper (Sn96.5Ag3.0Cu0.5)

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Tol-Max:

    2.1%

  • Working Test Current:

    5 mA
