UP2-AH-1-TH - Same Sky

Description: Type A, USB 2.0, 480 Mbps, 30 Vac, 1 A, Right Angle, Through Hole Mounting Style, Through Hole Contact Pin Type, 3 µin Plating Thickness, Black Insulator, USB Plug

Download UP2-AH-1-TH Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
UP2-AH-1-TH - Same Sky - PCB symbol
click to zoom
PCB Footprints

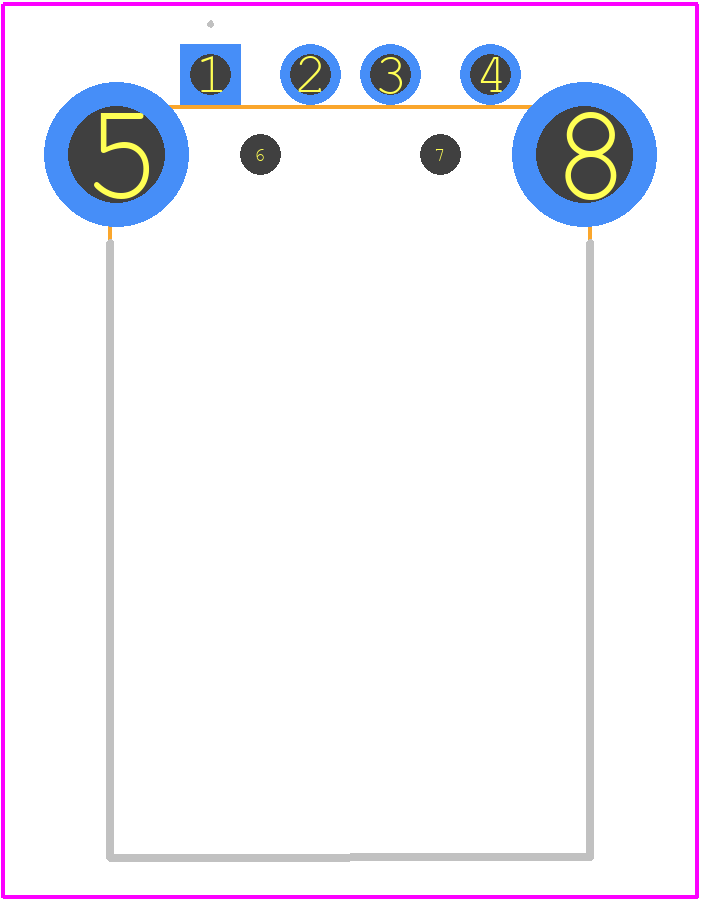

UP2-AH-1-TH - Same Sky PCB footprint - Other - Other - UP2-AH-1-TH-4
click to zoom
3D Models
UP2-AH-1-TH - Same Sky - 3D model - Other - UP2-AH-1-TH-4
click to zoom

UP2-AH-1-TH Details

  • Manufacturer Part Number:

    UP2-AH-1-TH

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Same Sky

  • YTEOL:

    6.2

  • Board Mounting Option:

    MOUNTING FLANGE

  • Body Breadth:

    0.177 inch

  • Body Depth:

    0.738 inch

  • Body Length:

    0.502 inch

  • Body/Shell Style:

    PLUG

  • Connector Type:

    USB CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    30 mΩ

  • Contact Style:

    USB 2.0 A

  • Dielectric Withstanding Voltage:

    500VAC V

  • Durability:

    1500 Cycles

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulation Resistance:

    1000000000 Ω

  • Insulator Color:

    BLACK

  • Insulator Material:

    POLYBUTYLENE TEREPHTHALATE

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of PCB Rows:

    1

  • Number of Ports:

    1

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • Plating Thickness:

    FLASH inch

  • Polarization Key:

    POLARIZED HOUSING

  • Rated Current (Signal):

    1.5 A

  • Reference Standard:

    UL

  • Shell Finish:

    NICKEL

  • Shell Material:

    STEEL

  • Terminal Length:

    0.04 inch

  • Terminal Pitch:

    2 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    4

  • UL Flammability Code:

    94V-0
