Renesas provides a recommended PCB layout guide in their application note (APN) document, which includes guidelines for thermal vias, copper pours, and component placement to ensure optimal thermal performance.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating conditions, use a suitable heat sink, and implement thermal monitoring and protection mechanisms, such as thermal shutdown or warning circuits.
Renesas recommends using low-ESR capacitors with a value of 10uF to 22uF for input and output capacitors, depending on the specific application requirements and operating conditions.
To troubleshoot common issues like oscillation or instability in the output voltage, check the PCB layout, component selection, and input/output capacitor values. Ensure that the device is operated within the recommended operating conditions, and consider using simulation tools or consulting with Renesas support for further assistance.
Different package types or variants of the UPA2738GR-E2-AX may have different thermal performance, pinouts, or operating characteristics. It's essential to consult the datasheet and application notes for the specific variant being used to ensure compatibility and optimal performance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UPA2738GR-E2-AX Overview

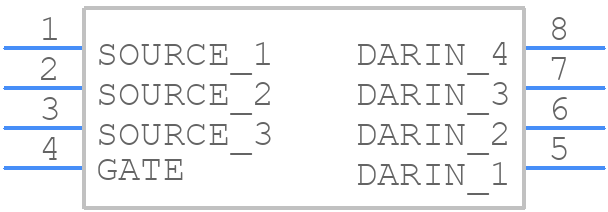

Use the download button to access the UPA2738GR-E2-AX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UPA27,
or try a keyword search, such as Power Field-Effect Transistors
